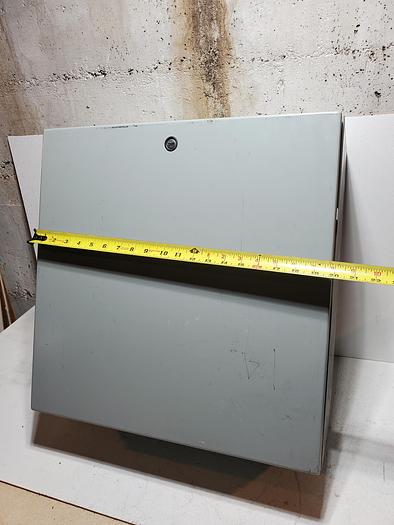

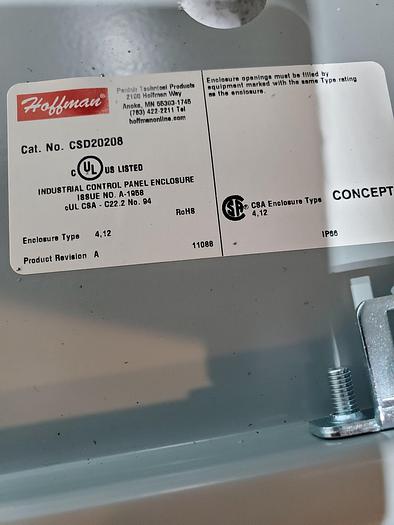

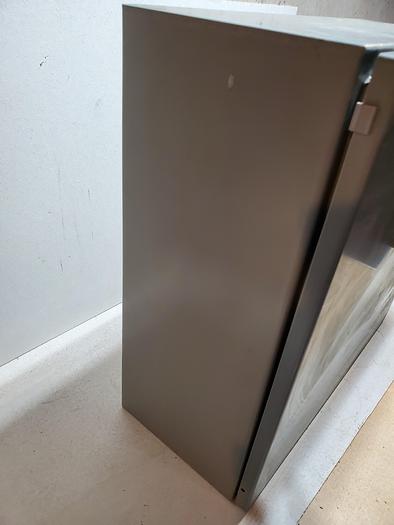

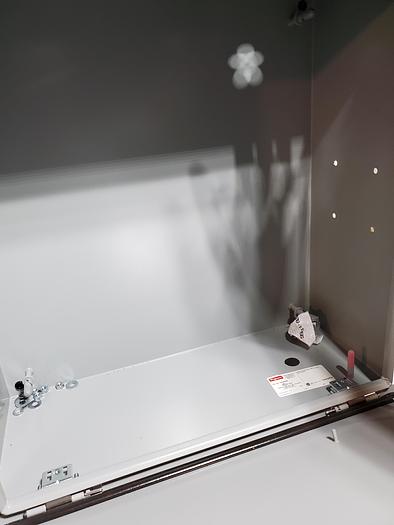

Hoffman Wall Mounted Enclosure Steel Wall Single Door 20x20x8
No longer available
Hoffman Wall Mounted Enclosure Steel Wall Single Door 20x20x8
$259 (USD)
Available quantity: 1
Preston, ID
Description
(X2) NEW, OPEN BOX
Hoffman Electrical Enclosure
- Seams continuously welded and ground smooth
- Corner-formed doors
- Simple easy-to-remove and install hinge pins with built-in captivation clip
- High-torque threadless studs and fasteners on door
- Minimum-width body flange provides maximum door opening (210 degrees)
- Door opens 210 degrees
- External formed body flange
PRODUCT ATTRIBUTES
- Height: 20 in / 508 mm
- Width: 20 in / 508 mm
- Depth: 8 in / 203 mm
- Protection Rating: NEMA Type 12; NEMA Type 4; IP66
- Material: Mild Steel
- Finish: Powder Coated
- Color: Gray
- Color Code: ANSI 61
- Body Thickness: 16 / 1.52 mm
- Door Thickness: 16 / 1.52 mm
- Concept Panel: CP2020
- Conductive Concept Panel: CP2020G
- Panel Size: 18.20 x 18.20 in / 462 x 462 mm
- Mounting: 18.50 x 18.50 in / 470 x 470 mm
- Latch Quantity: 1
- Latch Style: Quarter-turn
- Weight: 29.6 lb
Specifications
Manufacturer | Hoffman Wall Mounted Enclosure Steel Wall Single Door 20x20x8 |
Condition | New |
