Mouser Electronics Hirose Standard Circular Connector HR22-12WTPA-20P(73) 20P M STRT 2A GHGC-D6

*Please read full description prior to purchase*

**eBay policy restricts the display of phone numbers in the listing**

visit our page Gearheadsurpluscom!!

SELLING "AS IS - WHERE IS" AS DESCRIBED

** see all pictures**

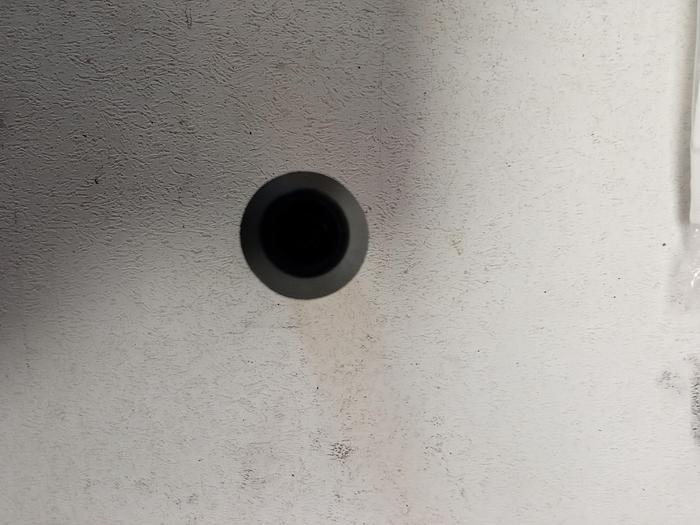

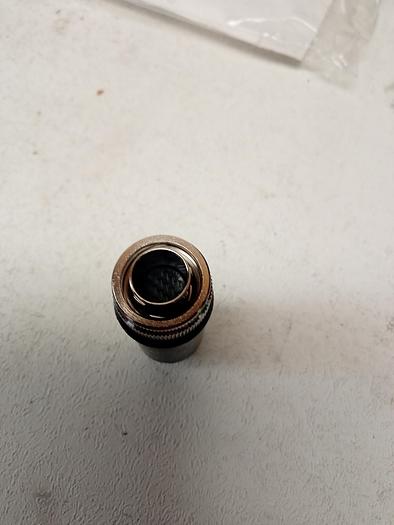

Hirose HR22-12WTPA-20P(73) 20-Position Circular Connector

The Hirose HR22-12WTPA-20P(73) is a compact, rugged circular connector designed for reliable electrical connections in industrial and demanding environments. This 20-position male plug features a straight cable-mount configuration, solder-cup contacts, and a threaded coupling mechanism for secure mating.

The HR22 series is designed to provide excellent environmental protection when mated, making it suitable for applications where protection against dust and water is required. Its durable metal construction, compact design, and reliable contact system make it a practical choice for industrial equipment, control systems, instrumentation, and other electronic applications.

Key Features

• 20-position male circular connector
• Straight cable-mount plug configuration
• Solder-cup contacts for wire termination
• Threaded coupling for secure and reliable mating
• Waterproof and dust-resistant design when properly mated
• Durable nickel-plated metal shell
• Silver-plated contacts for reliable electrical conductivity
• Compact design for space-constrained applications
• PBT UL94V-0 rated insulator material
• Designed for industrial and demanding applications
• Supports operating temperatures from -25°C to +85°C
• Rated for up to 100 mating cycles
• RoHS compliant
• Hirose HR22 series

Typical Applications

The HR22-12WTPA-20P(73) can be used in a variety of industrial and electronic applications, including:

• Industrial control equipment
• Factory automation systems
• Instrumentation and measurement equipment
• Electronic control systems
• Industrial machinery
• Communication and monitoring equipment
• Applications requiring compact, environmentally protected connections

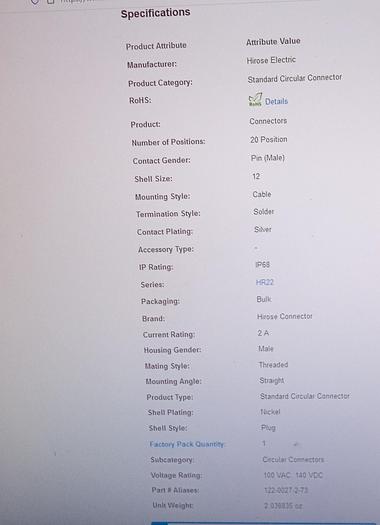

Manufacturer Information

Manufacturer: Hirose Electric Co., Ltd.

Series: HR22

Part Number: HR22-12WTPA-20P(73)

Hirose HRS Number: 122-0027-2-73

CL Number: CL0122-0027-2-73 :

Note to buyer:

1. Review all photos carefully as they are part of the description per eBay policy.
2. Items sold as new, tested, and or working may be returned within 30 days of receiving if not satisfied with purchase (restocking fee may apply). Buyer is responsible for return shipping costs.
3. Items that are untested, for parts or repair, or unknown condition are sold as is and are non-returnable.
4. Items are sold as pictured. If it is not shown in the pictures it doesn't come with the item (i.e. power cords, attachments, tooling, etc.)
5. !! Most listings at the end include a GH and then a number for example ( GH119 ) OR ( A19 ) it is a internal stock reference number and not part of the items description Thanks GearheadSurplus !!
