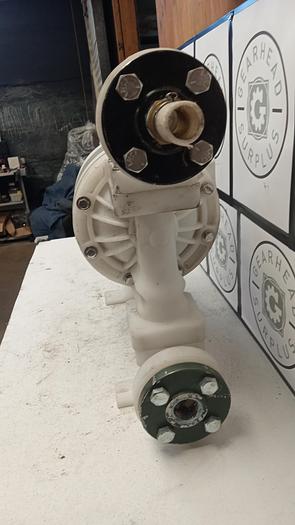

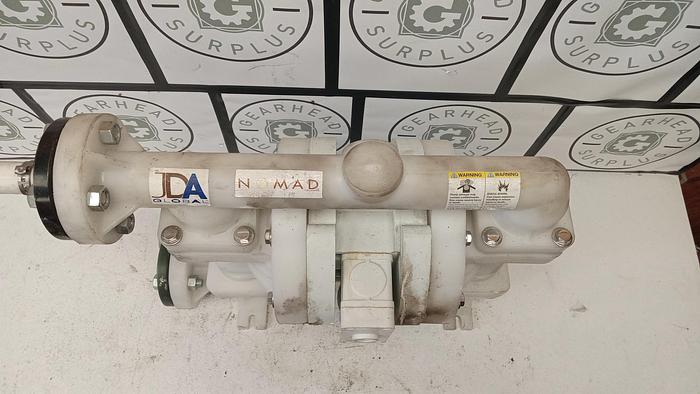

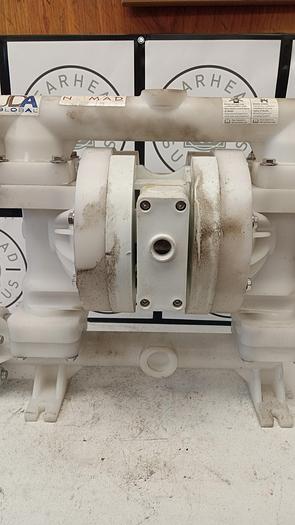

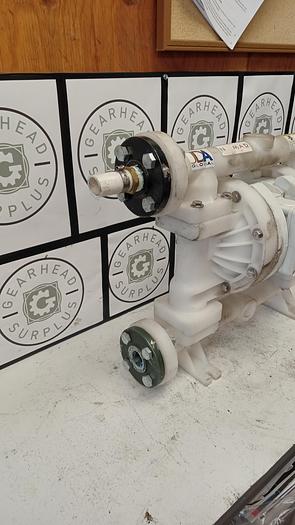

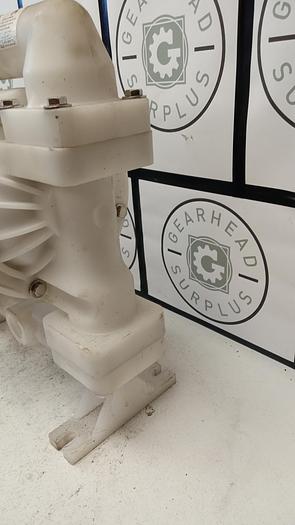

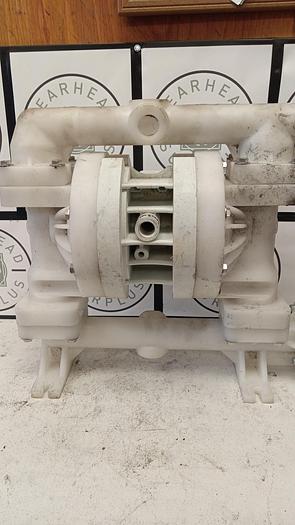

Nomad PWR-FLO NPF25 Diaphragm Pump

Part Number: 25-12641 | Condition: New

New Nomad® PWR-FLO™ NPF25 Air-Operated Double-Diaphragm (AODD) Pump. This 1" polypropylene pump is designed for dependable liquid transfer in industrial, chemical processing, filling, batching, and general fluid-handling applications.

The PWR-FLO™ air system is designed for efficient, reliable operation with anti-stall performance. The polypropylene construction provides corrosion resistance, while the Santoprene® diaphragms and PTFE valve balls are suited for a variety of fluid-handling applications.

Specifications

• Manufacturer: Nomad®
• Series: PWR-FLO™
• Model: NPF25
• Part Number: 25-12641
• Pump Type: Air-Operated Double-Diaphragm (AODD)
• Pump Size: 1"
• Construction: Polypropylene
• Diaphragm Material: Santoprene®
• Valve Ball Material: PTFE
• Valve Seat Material: Polypropylene
• Valve Seat O-Ring: PTFE
• Fluid Connections: Flanged
• Air Operated: Yes
• Maximum Flow: Approx. 34 GPM / 135 LPM
• Maximum Operating Pressure: 125 PSI / 8.6 bar
• Maximum Fluid Temperature: Approx. 175°F / 79°C
• Maximum Solids Size: Approx. 0.125" / 3.2 mm
• Displacement per Stroke: Approx. 0.091 gallon
• Air Inlet: 1/4"
• Air Exhaust: 1/2"

Features

• PWR-FLO™ asymmetrical spool air system
• Anti-stall operation
• Corrosion-resistant polypropylene construction
• Santoprene® diaphragms
• PTFE valve balls
• Air-powered operation—no electric motor required
• Suitable for liquid transfer, filling, batching, and slurry applications
• Bolted pump construction

Condition

New / Unused

Part number 25-12641 and model NPF25 should be verified against the pump nameplate before installation to ensure the specifications and materials are appropriate for the intended application.

Maximum flow, pressure, temperature, solids handling, and chemical compatibility depend on operating conditions and the fluid being pumped.
