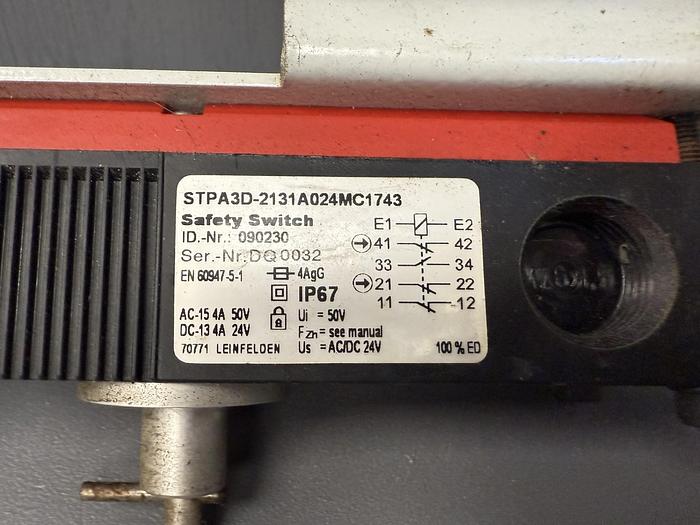

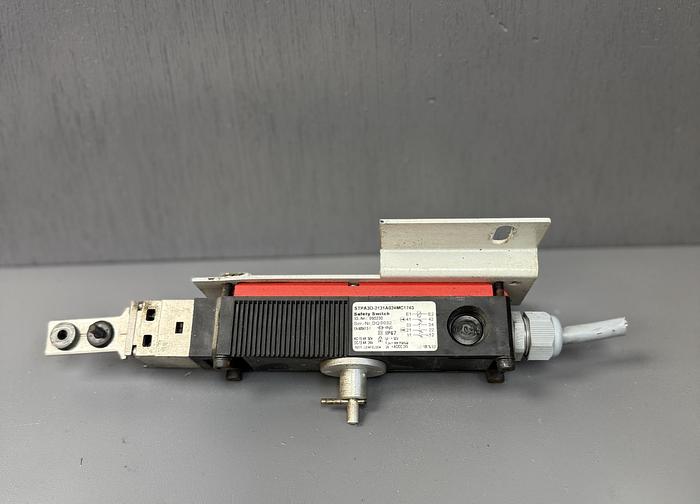

EUCHNER STPA3D-2131A024MC1743 Safety Switch – Order No. 090230

Used – Industrial Safety Interlock Switch

For sale is a EUCHNER STPA3D-2131A024MC1743 Safety Switch, Order No. 090230. This is a heavy-duty industrial safety switch designed for monitoring and locking safety doors and machine guards.

The switch features guard locking with power-to-unlock operation, door-position monitoring, and a built-in short escape release for manual unlocking from inside the guarded area.

Specifications

• Manufacturer: EUCHNER
• Model: STPA3D-2131A024MC1743
• Order / Part No.: 090230
• Series: STP
• Switching element: 2131 – slow-action switching contact
• Guard locking principle: Closed-circuit current / power-to-unlock
• Solenoid voltage: 24 V AC/DC
• Solenoid power consumption: 8 W
• Solenoid duty cycle: 100%
• Guard locking monitoring: 2 positively driven NC contacts + 1 NO contact
• Door monitoring: 1 NC contact
• Rated thermal current: 4 A
• Utilization category: AC-15: 4 A / 50 V; DC-13: 4 A / 24 V
• Cable entries: 3 × M20 × 1.5
• Connection wire size: 0.34–1.5 mm²
• Protection rating: IP67
• Mechanical life: 1,000,000 operations
• Maximum actuation frequency: 1,200 operations/hour
• Maximum approach speed: 20 m/min
• Actuation force: 35 N
• Extraction force: 30 N
• Locking force: Fmax 2,500 N
• Locking force: FZh 2,000 N
• Insertion depth: 28.5 mm
• Ambient operating temperature: -20°C to +55°C
• Storage temperature: -25°C to +70°C
• Mounting orientation: Any
• Housing: Reinforced thermoplastic
• Contacts: Silver alloy, gold flashed
• Escape release: Short, manual escape release
• Insertion funnel: Included
• Approach direction: Horizontal or vertical, adjustable in 90° increments

Condition

Used condition. The item may show normal signs of previous industrial use, such as minor cosmetic marks, scuffs or surface wear.

Please examine the photographs carefully as they form part of the description.

Important

Actuator is NOT included. The EUCHNER specifications indicate that an actuator is required separately for operation. An appropriate actuator must be selected to suit the installation.

This item is being sold as a used industrial component. Please make sure the model and specifications are suitable for your application before purchasing.

Part Number: 090230

Model: STPA3D-2131A024MC1743

A genuine EUCHNER product.

Specifications are based on the manufacturer's published information. Please refer to the manufacturer's documentation for installation, wiring, safety requirements and application-specific information.
