SCHURTER 6762 Power Entry Module – IEC C14 / C18 Inlet, Switch & Fuseholder GHGC-4

*Please read full description prior to purchase*

**eBay policy restricts the display of phone numbers in the listing**

Visit our page https://www.gearheadsurplus.com

SELLING "AS IS - WHERE IS" AS DESCRIBED

** see all pictures**

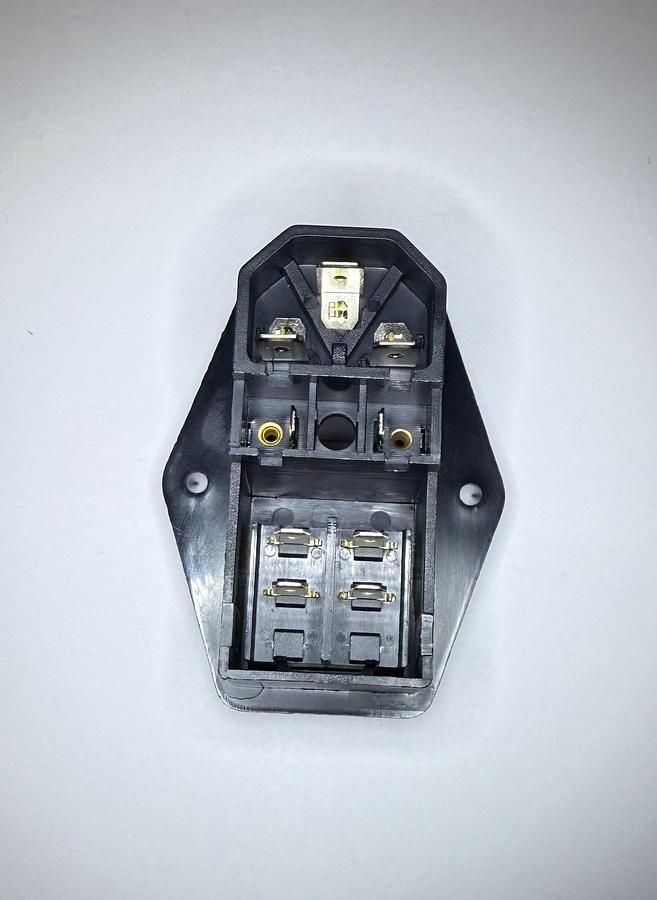

SCHURTER 6762 Power Entry Module – IEC C14 / C18 Inlet, Switch & Fuseholder

For sale is a SCHURTER Power Entry Module, Model 6762, designed for reliable AC power entry in industrial and electronic equipment.

Manufacturer: SCHURTER

Series / Model: 6762

Type: Power Entry Module (without line filter)

IEC Appliance Inlet: C14 or C18 (70°C rated)

Line Switch: 1- or 2-pole (rocker switch, illuminated or non-illuminated depending on configuration)

Fuseholder: 1-pole

Mounting: Snap-in or screw-on mounting, front-side installation

Panel Thickness: Screw mounting max. 0.5 mm

Terminal: Solder / Quick Connect

Electrical Ratings:

• Rated Current: 10A @ 250VAC, 50/60Hz
• UL/CSA: 10A @ 250VAC, 60Hz
• Dielectric Strength:
• 1.5 kVAC between L–N
• 3.5 kVAC between L/N–PE
• IP Protection: Front side IP40 (per IEC 60529)
• Operating Temperature: −25°C to +70°C

Materials:

• Housing: PA6, black
• Flammability Rating: UL94 V-0

Approvals & Compliance:

• IEC/EN 60320-1 (C14 / C18)
• IEC 60950-1 / IEC 62368-1
• UL Recognized (File E93617)
• SEMKO Approved
• Glow wire tested per IEC standards

Typical Applications:

• Industrial equipment
• Laboratory instruments
• Power supplies
• Medical and commercial electronics
• Appliances requiring integrated inlet, switch, and fuse protection

Condition:

• NEW OLD STOCK
