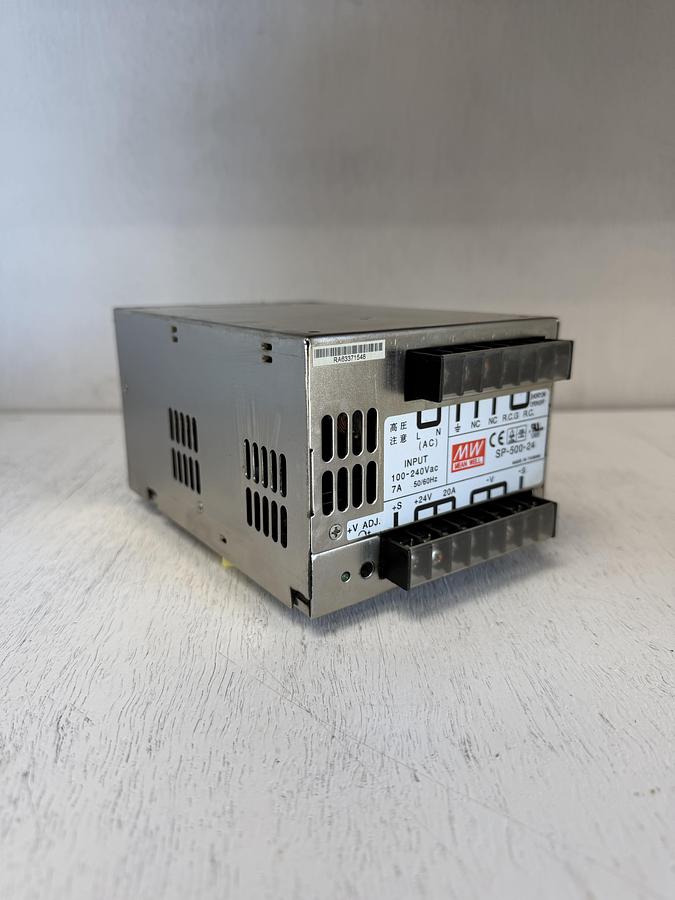

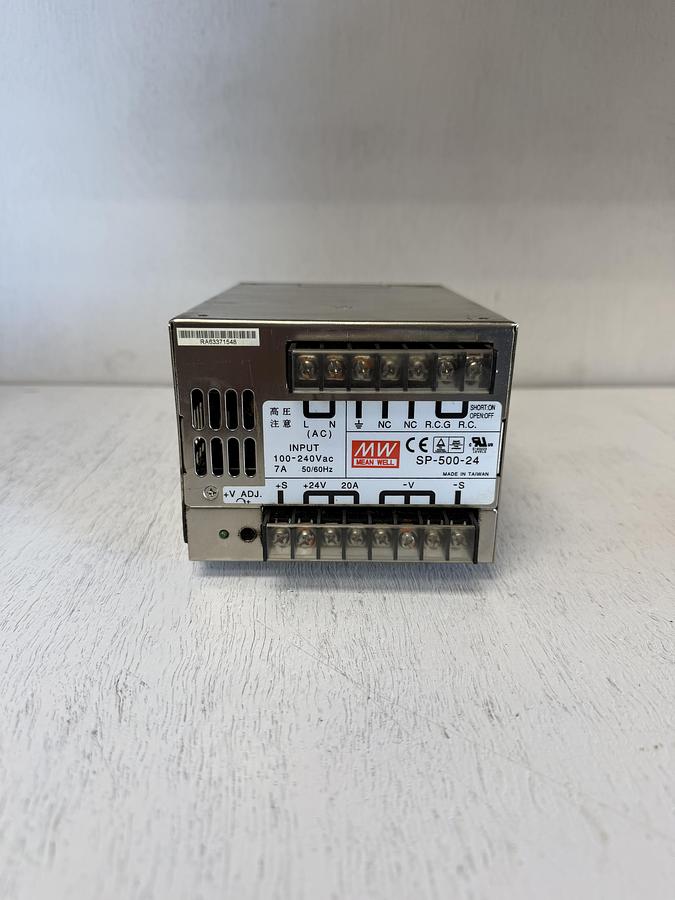

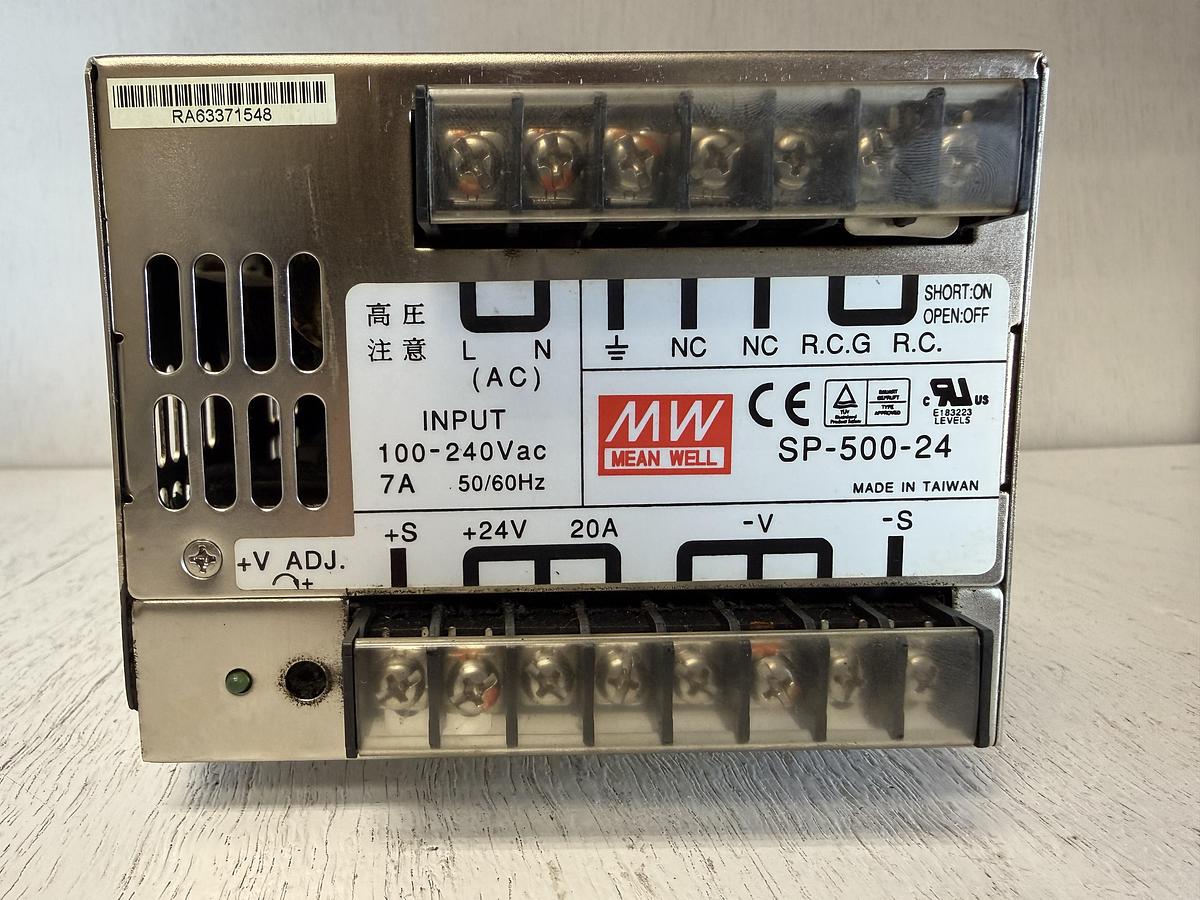

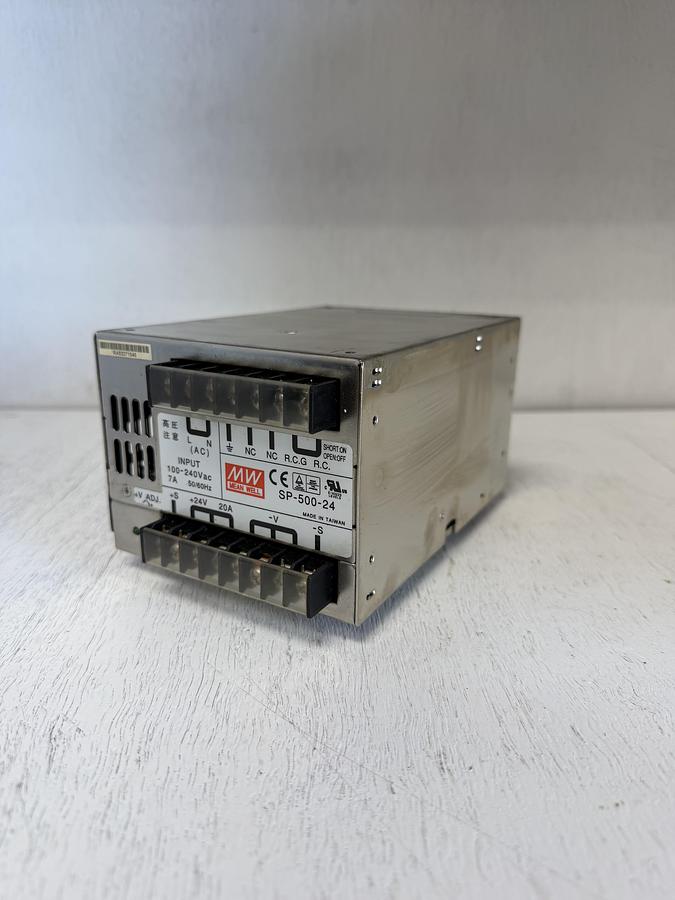

Mean Well SP-500-24 Switching Power Supply 50/60Hz

Specifications:

• Brand: Mean Well
• Series: SP-500
• Model: SP-500-24
• Type: Switching Power Supply
• Output Voltage: 24V DC
• Output Current: 0–20A
• Power Rating: 480W
• Voltage Adjustment Range: 20 ~ 26.4V
• Ripple & Noise: 240mVp-p
• Voltage Tolerance: ±1.0%
• Line Regulation: ±0.5%
• Load Regulation: ±0.5%

Input Specifications:

• Input Voltage: 88–264VAC / 124–370VDC
• Frequency Range: 47–63Hz
• Power Factor: PF > 0.95 @ 230VAC
• Efficiency: ~85.5%
• AC Current: 7A/115VAC, 3.5A/230VAC

Features:

• Universal AC input / full range
• Built-in active PFC function

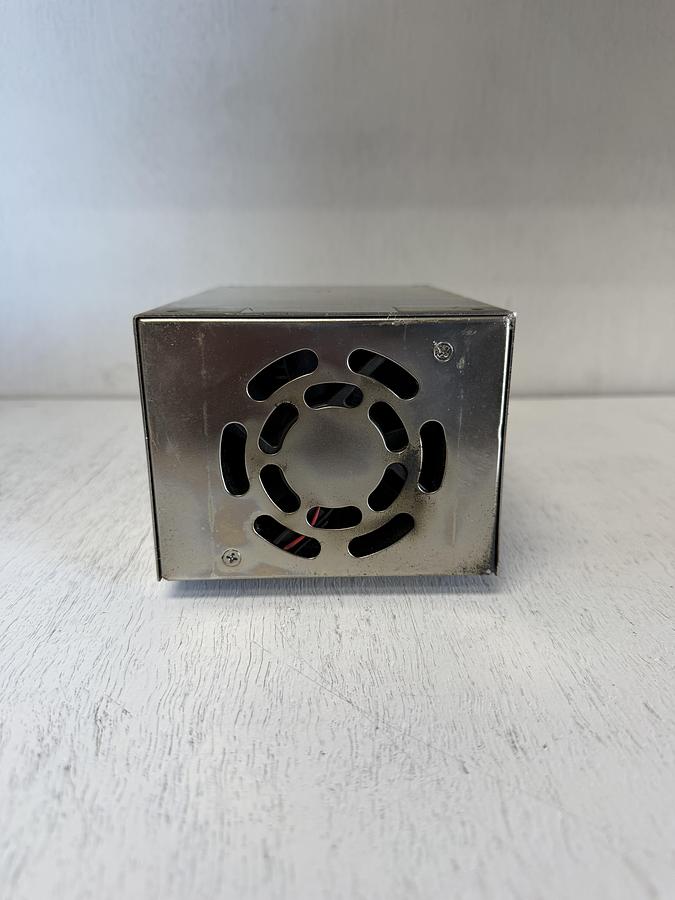

• Built-in cooling fan with ON/OFF control
• Forced air cooling
• Remote ON/OFF control
• Remote sense function
• Fixed switching frequency (~110kHz)

Protections:

• Short circuit protection
• Overload protection (105–135% rated output)
• Over voltage protection (27.6–32.4V)
• Over temperature protection

Environmental:

• Operating Temp: -10°C to +50°C
• Humidity: 20–90% RH (non-condensing)
• Storage Temp: -20°C to +85°C

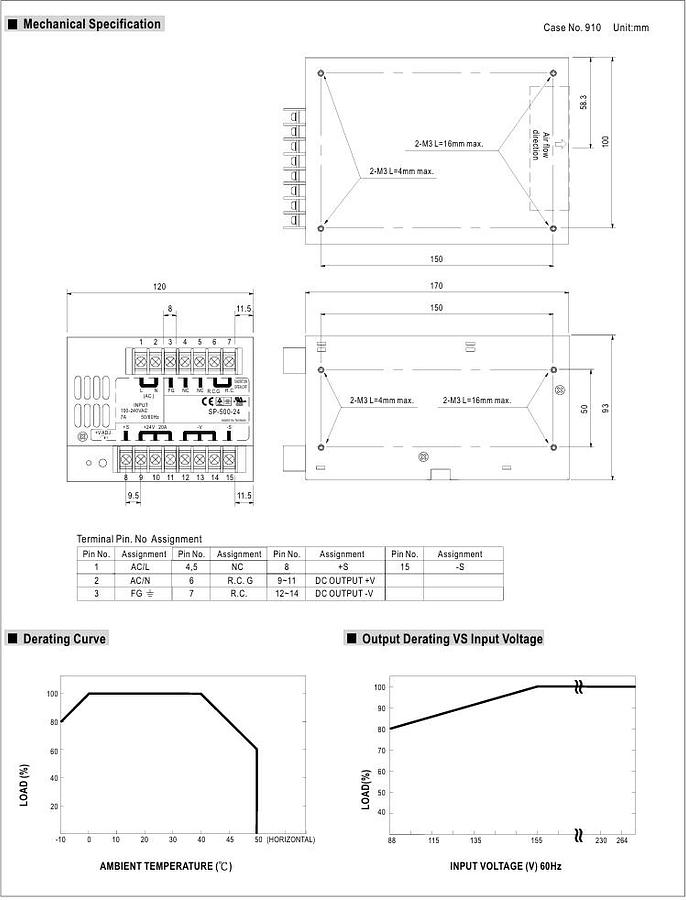

Physical:

• Dimensions: Approx. 170 x 120 x 93 mm
• Weight: ~1.9 kg (4.19 lbs)

Condition:

• Used, in good working condition
• May show normal cosmetic wear such as scratches, dust, or minor marks
• Please review all photos for exact condition

Notes:

• No additional accessories included unless shown
• Installation should be performed by a qualified individual
