Abbott TG12MDS1 Soft Lathe Chuck Jaw: Tongue & Groove GHA-181

*Please read full description prior to purchase*

**eBay policy restricts the display of phone numbers in the listing**

Visit our page https://www.gearheadsurplus.com

SELLING "AS IS - WHERE IS" AS DESCRIBED

** see all pictures**

Lightly used- In good condition

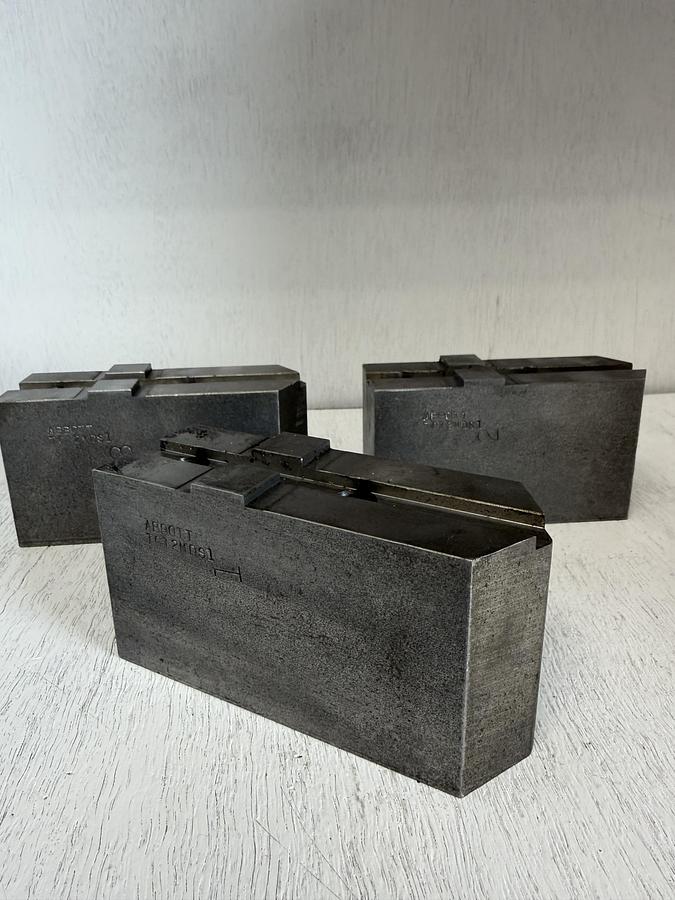

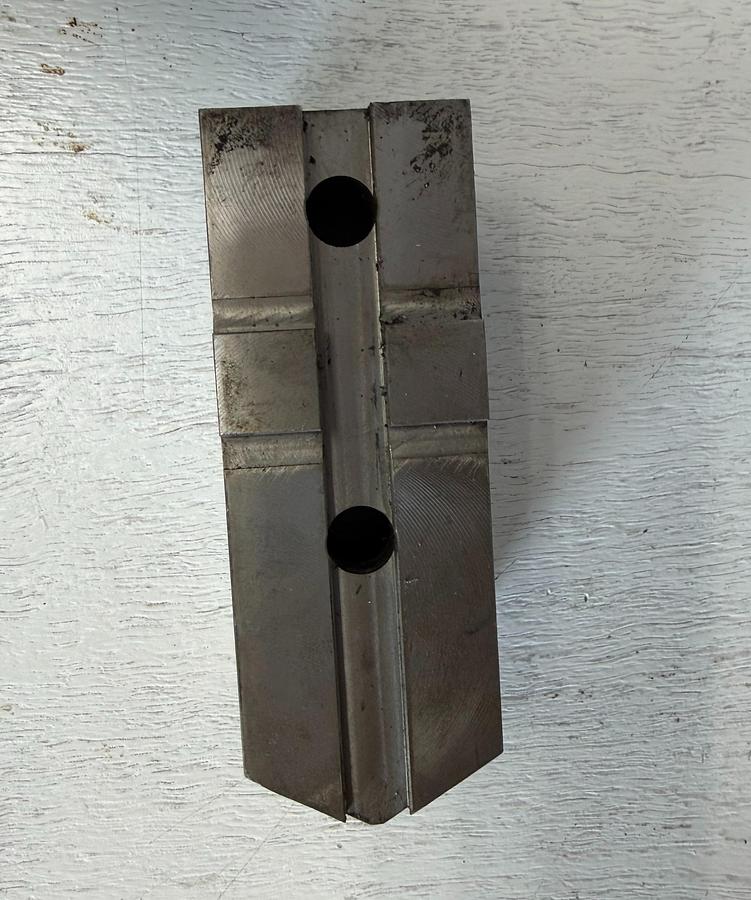

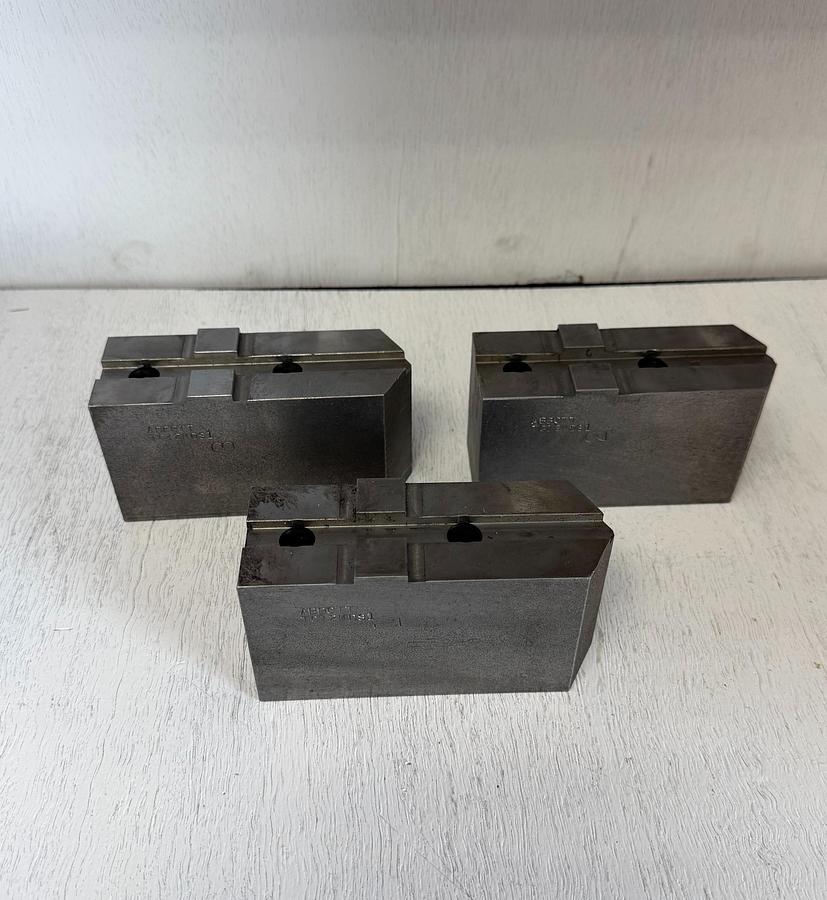

Abbott TG12MDS1 Soft Lathe Chuck Jaw: Tongue & Groove

2" OAW, 3" OAH, 5-1/2" OAL, 2.5" Between Mount Holes, 0.5" Fastener, Steel

Jaw Shape: Square

Jaw Interface Type: Tongue & Groove

Material: Steel

Maximum Compatible Chuck Diameter (mm) :12.00

Maximum Compatible Chuck Diameter (Decimal Inch) :12.0000

Distance Between Mount Hole Centers (Decimal Inch) :2.5000

Distance Between Mount Hole Centers (mm) :63.50

Tongue Width (Decimal Inch) :0.7500

Tongue Length (Decimal Inch) :0.7500

Tongue Width (mm) :19.10

Fastener Size (Decimal Inch) : 0.5000

Slot Width: 12.70

Slot Width (Decimal Inch) :0.5000

Groove Width (mm) :12.70

Groove Width (D) (Decimal Inch) : 0.5000

Overall Height (Decimal Inch) : 3.0000

Overall Height (mm) :76.20000

Overall Length (Inch) : 5-1/2

Overall Length (Decimal Inch) :5.5000

Material Grade: 1018

Overall Width/Diameter (Inch) :2

Overall Width/Diameter (Decimal Inch) :2.0000

Number Of Jaws :3

UNSPSC Code: 31162902

Country of Origin: UNITED STATES

Note to buyer:

1. Review all photos carefully as they are part of the description per eBay policy.
2. Items that are untested, for parts or repair, or unknown condition are sold as is and are non-returnable.
3. Items are sold as pictured. If it is not shown in the pictures it doesn't come with the item (i.e. power cords, attachments, tooling, etc.)
4. Most listings at the end include a GH and then a number for example (GH119) OR (A19) it is an internal stock reference number and not part of the item's description.

Thanks, GearheadSurplus
