Tsugami Live Tool Holder – P/N LLU-ER20-1-R – W/ ER20 Collet GHA-188

*Please read full description prior to purchase*

**eBay policy restricts the display of phone numbers in the listing**

Visit our page https://www.gearheadsurplus.com

SELLING "AS IS - WHERE IS" AS DESCRIBED

** see all pictures**

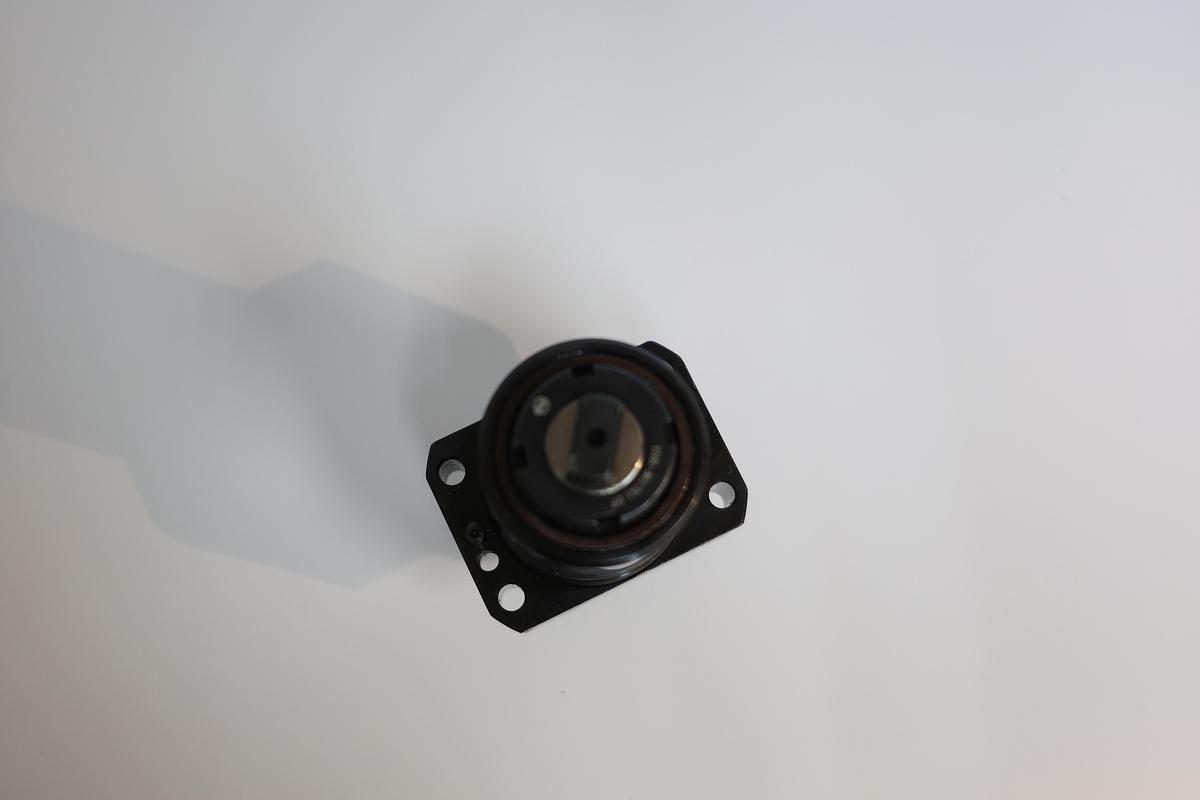

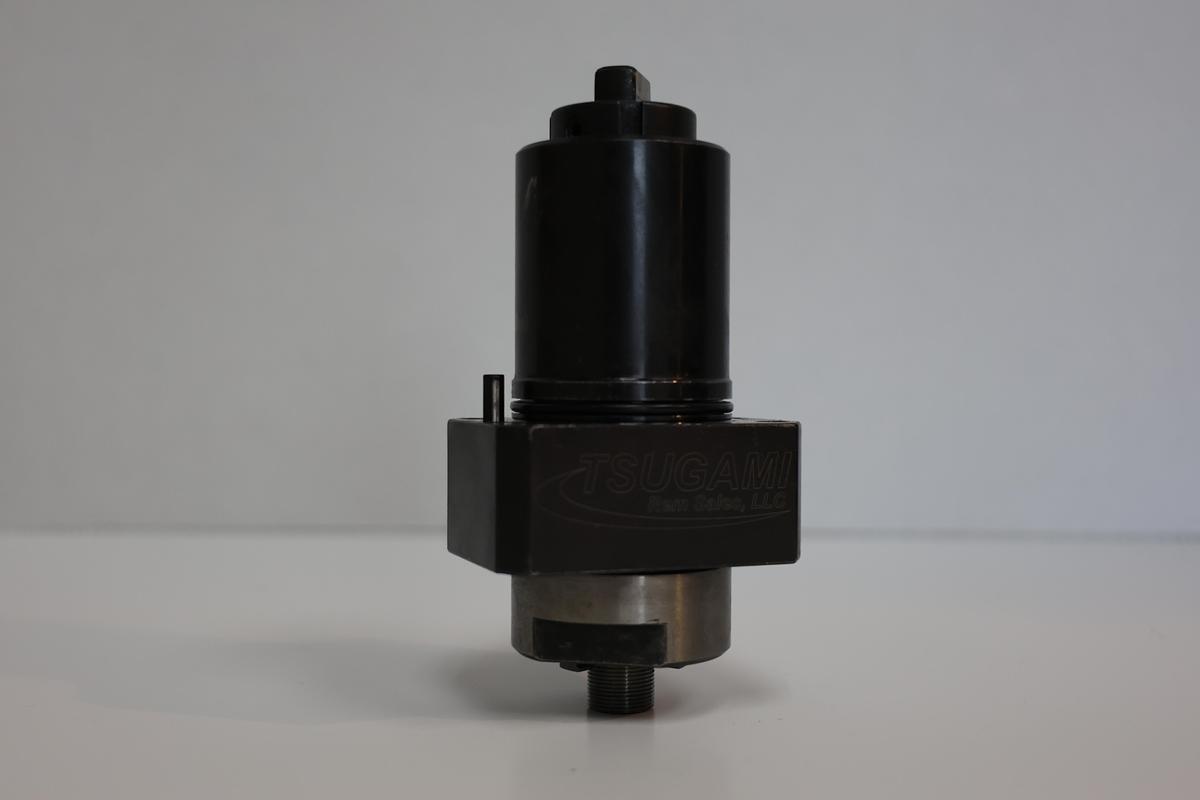

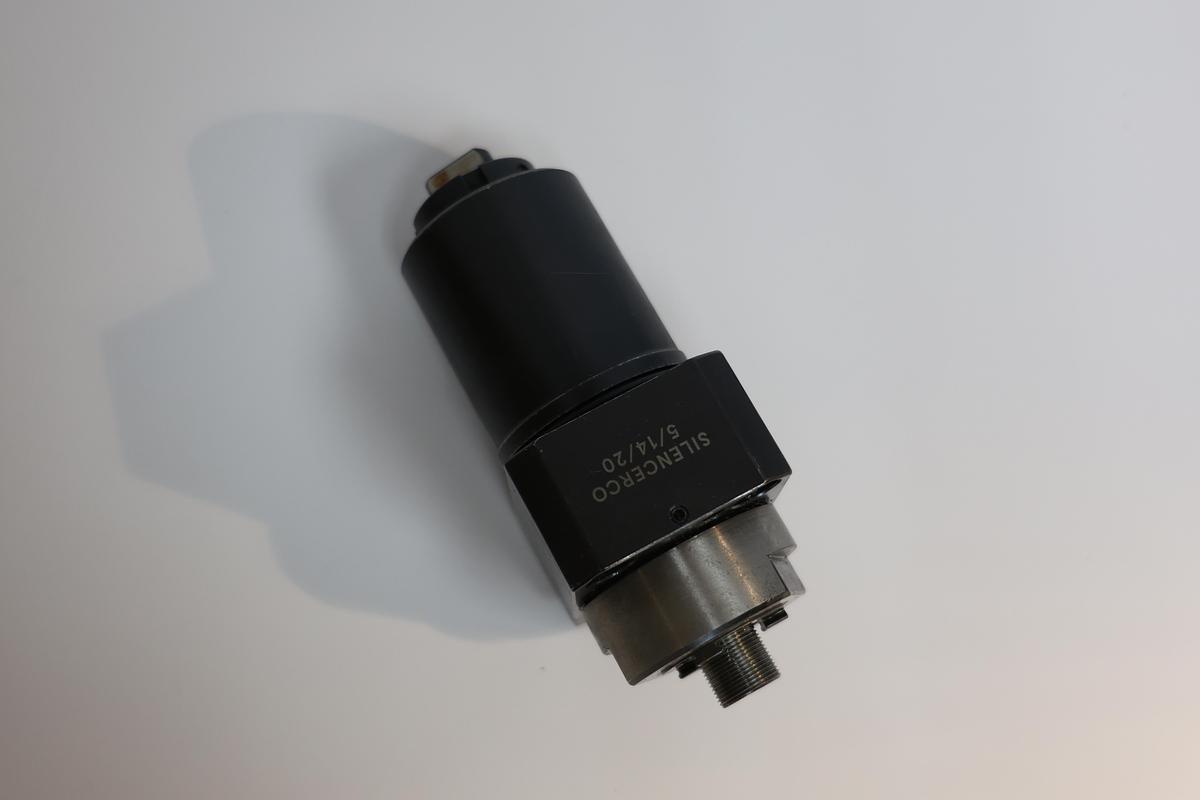

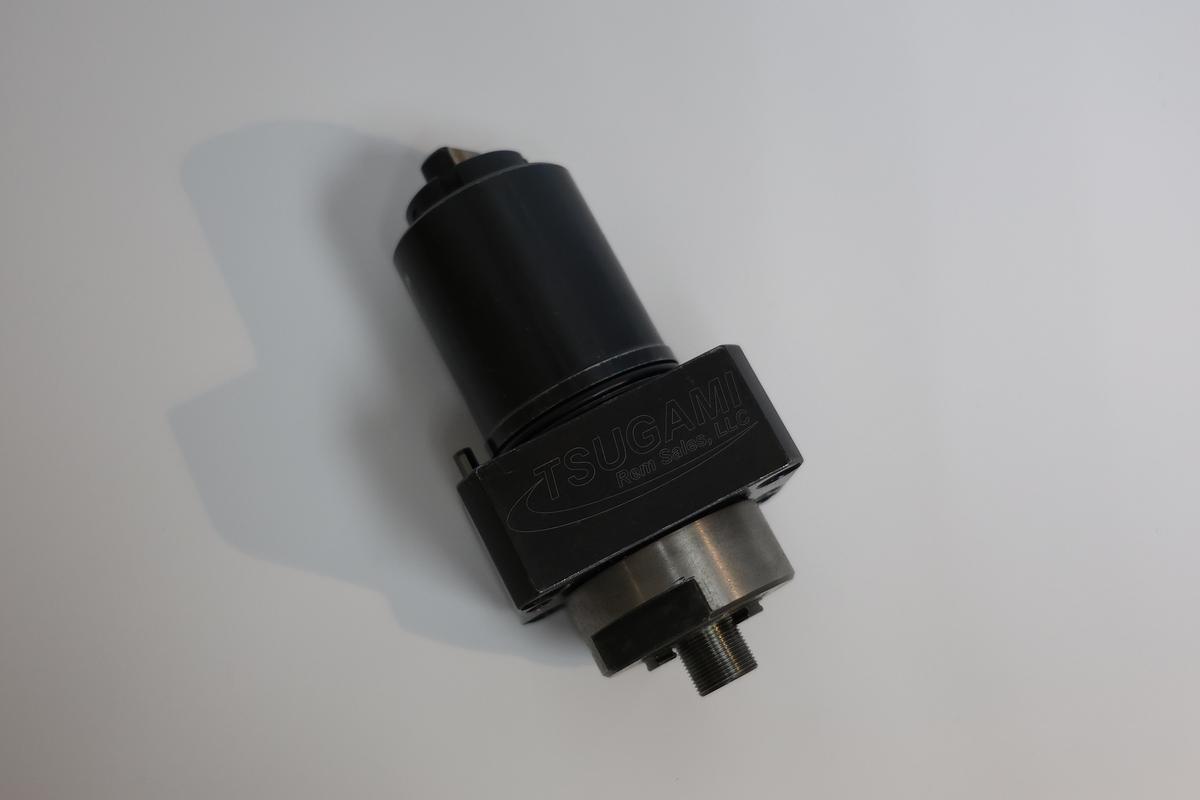

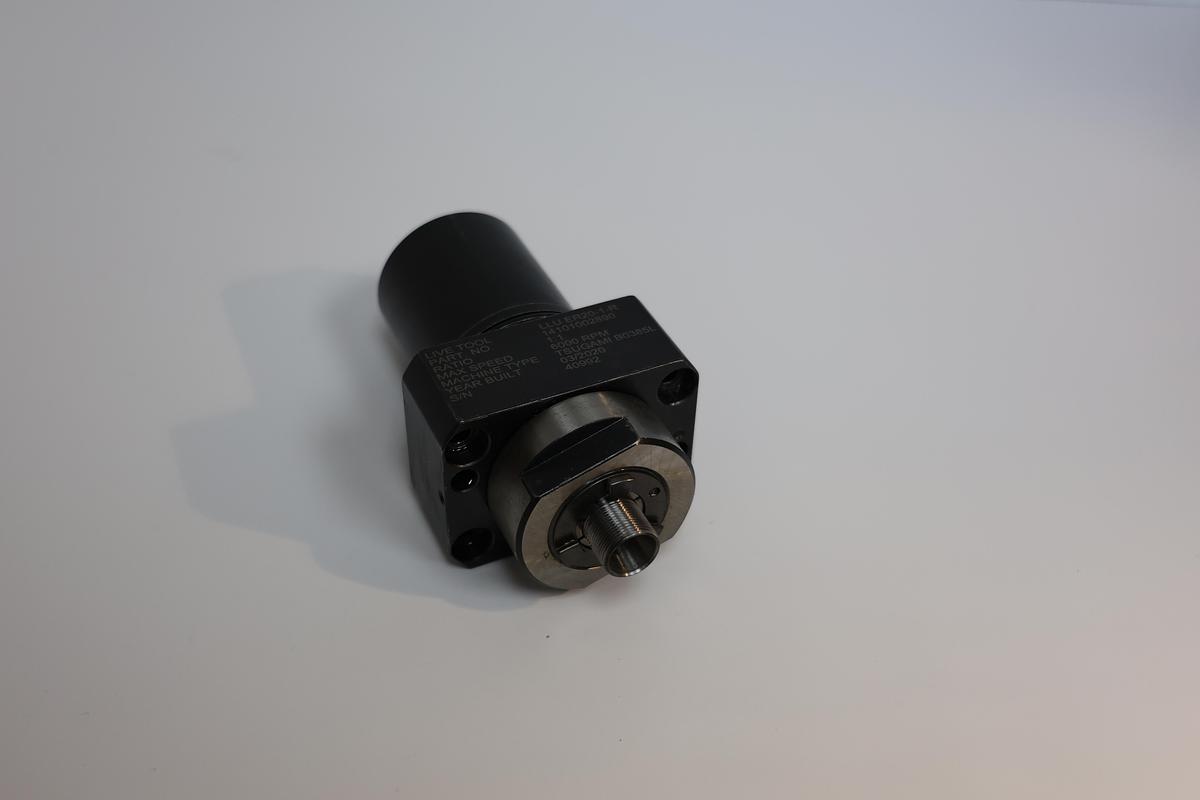

Tsugami Live Tool Holder – P/N LLU-ER20-1-R – W/ ER20 Collet

Used Tsugami live tool holder, Part Number: LLU-ER20-1-R, removed from a fully functional system. Designed for use with a Tsugami BO385L CNC Swiss-type lathe.

This unit was operational at the time of removal and is being sold in used condition. Shows normal cosmetic wear from prior shop use, but remains a solid replacement or spare for your machine setup.

Details:

Manufacturer: Tsugami

Part Number: LLU-ER20-1-R

Type: Live Tool Holder

Collet System: ER20

Configuration: Right-Angle Live Tool (R)

Drive Ratio: 1:1 (typical for this style of live tool)

Rotation Direction: Standard live spindle drive

Max Tool Capacity: Up to 13mm / 1/2" depending on ER20 collet used

Max Speed: Typically up to 6,000 RPM for ER20 live tooling applications ()

Coolant: Depends on machine setup / holder configuration

Machine Compatibility: Tsugami BO385L

Condition: Used – removed from Functional system

• Application: Cross drilling, milling, tapping, and secondary machining operations

Compatible with Tsugami Swiss-type CNC lathes using the LLU-ER20-1-R live tooling interface, including:

• Tsugami BO385L
• Tsugami BO386
• Tsugami B0385 Series (verify turret/live tool station configuration)
• Other Tsugami Swiss machines using ER20 right-angle live tool holders with matching drive and mount specifications

Important: Please verify part number (LLU-ER20-1-R) and machine interface compatibility with your specific machine model before purchase, as tooling configurations may vary by setup and year.

Please review photos carefully for exact condition and configuration. Ideal for replacement, backup inventory, or machine rebuild projects.
