1000W 10 Ohm Wirewound Power Resistor 10Ω J Industrial Load Brake Resistor

*Please read full description prior to purchase*

**eBay policy restricts the display of phone numbers in the listing**

SELLING "AS IS - WHERE IS" AS DESCRIBED

** see all pictures**

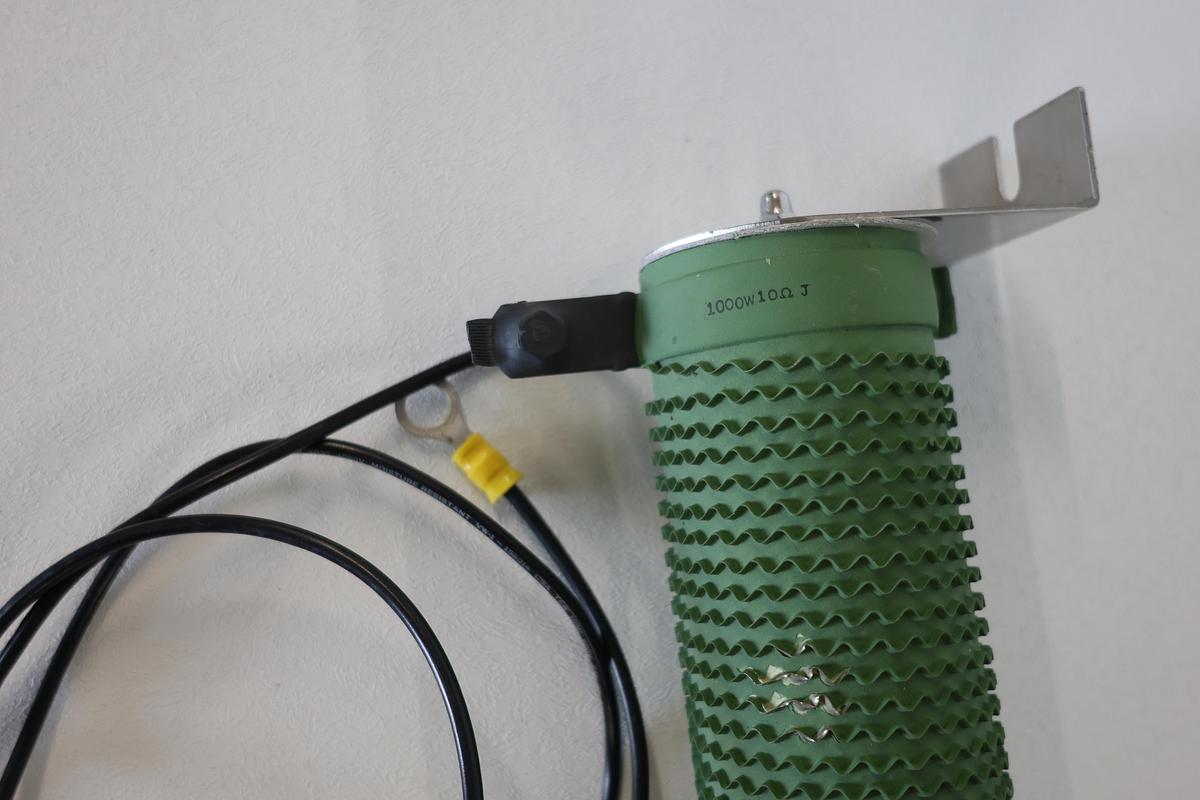

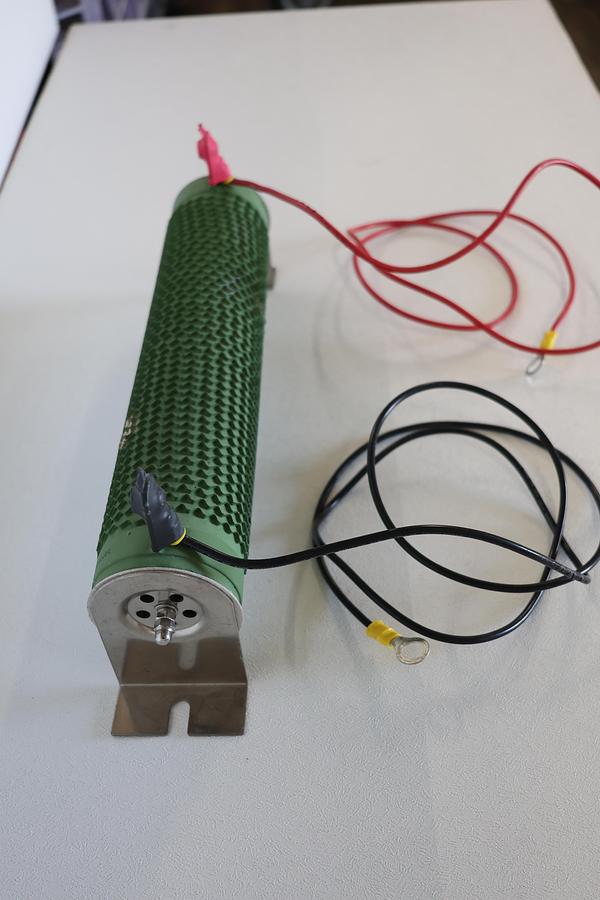

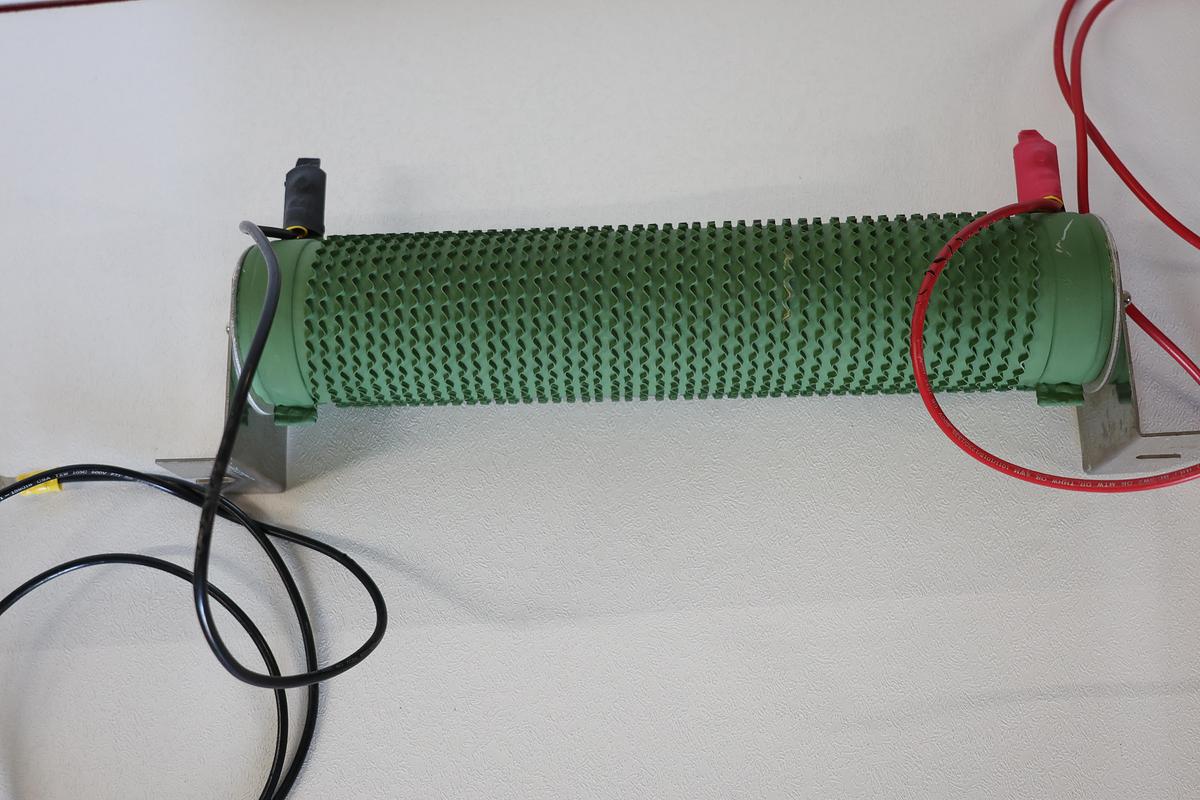

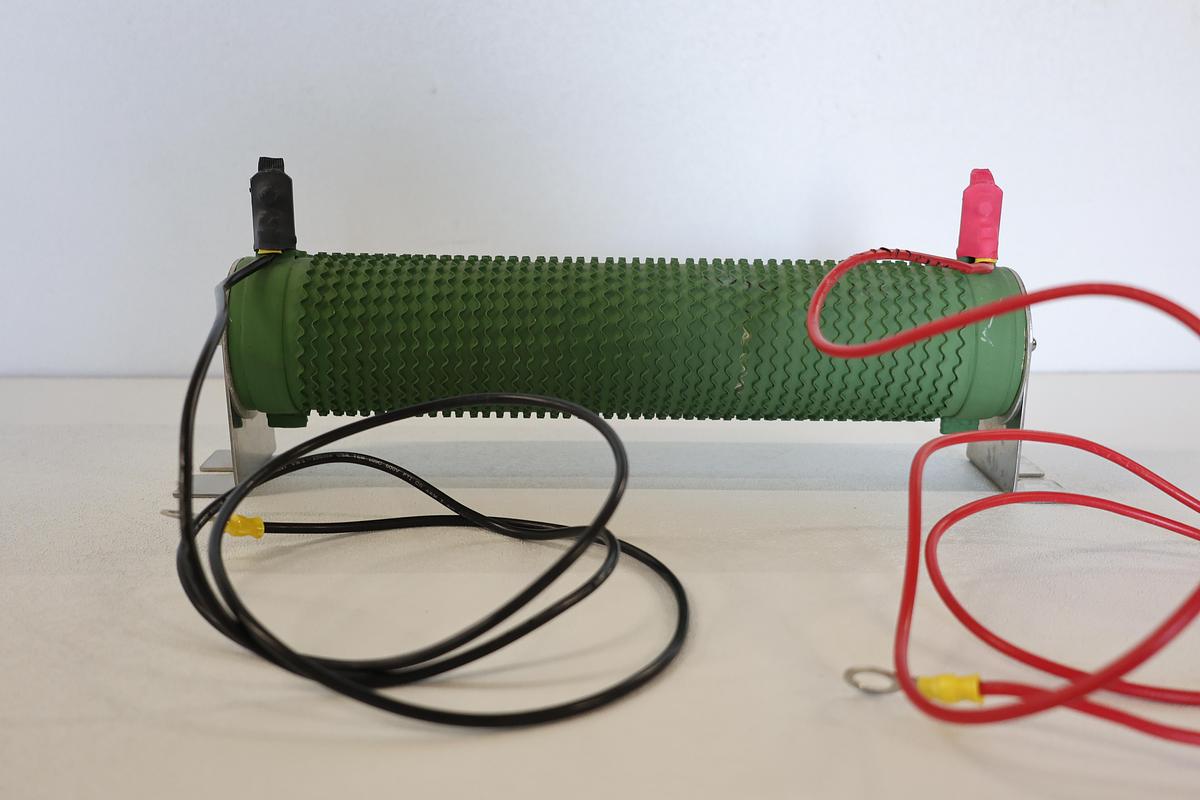

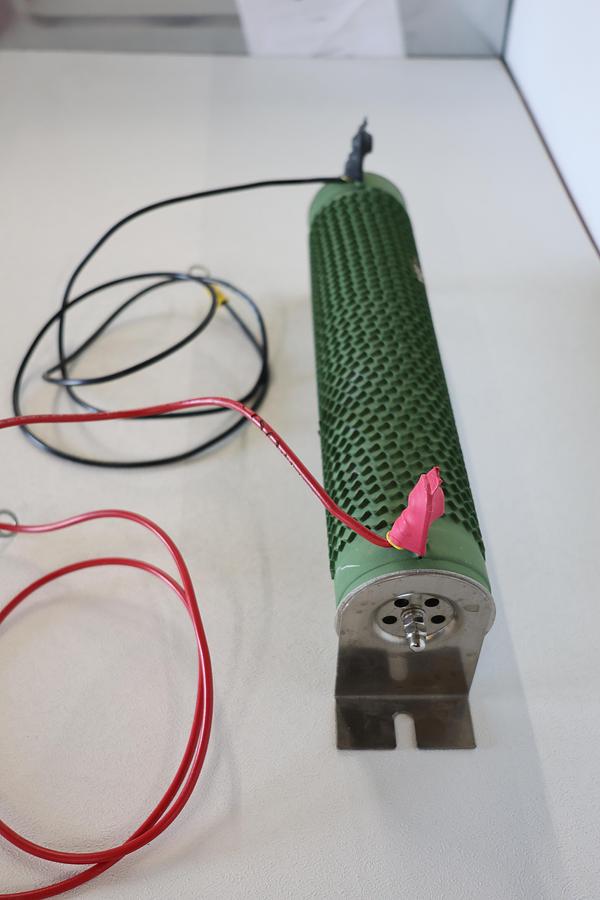

Industrial Wirewound Power Resistor – 1000W 10Ω J – Used, Pulled From Functional System

Heavy-duty industrial wirewound power resistor removed from a working system. This resistor features a high-power ceramic core with corrugated protective coating designed to improve heat dissipation during continuous operation. Mounted on factory metal brackets and includes attached lead wires with ring terminals for easy installation.

Ideal for load banks, motor controls, braking circuits, power supply testing, industrial automation equipment, and other high-current resistor applications.

Specifications

• Resistance: 10 Ohms (10Ω)
• Power Rating: 1000 Watts (1 kW)
• Tolerance: J (±5%)
• Type: Industrial Wirewound Power Resistor
• Mounting Style: Bracket Mount
• Overall Length: Approximately 12"
• Diameter: Approximately 2-1/2"
• Construction: Ceramic core with ventilated heat-dissipating protective coating
• Lead Connections: Attached insulated leads with ring terminals

Condition

• Removed from a functional industrial system.
• Shows normal cosmetic wear from previous use.
• Protective outer coating has minor cosmetic imperfections/chips visible in photos.
• Mounting brackets are intact and secure.
• No additional testing performed beyond operational removal.
• Sold exactly as pictured.

Applications

• Dynamic braking systems
• Motor drives and VFD braking circuits
• Load testing equipment
• Power supply load banks
• Industrial automation systems
• Energy dissipation and current limiting applications

Please review all photos carefully for condition details and exact configuration before purchasing.
