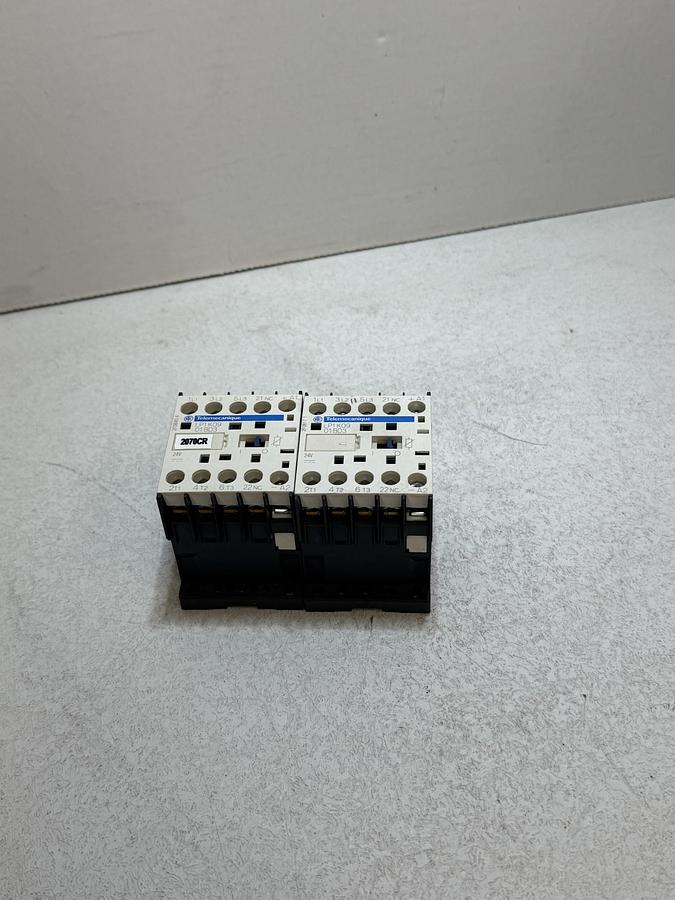

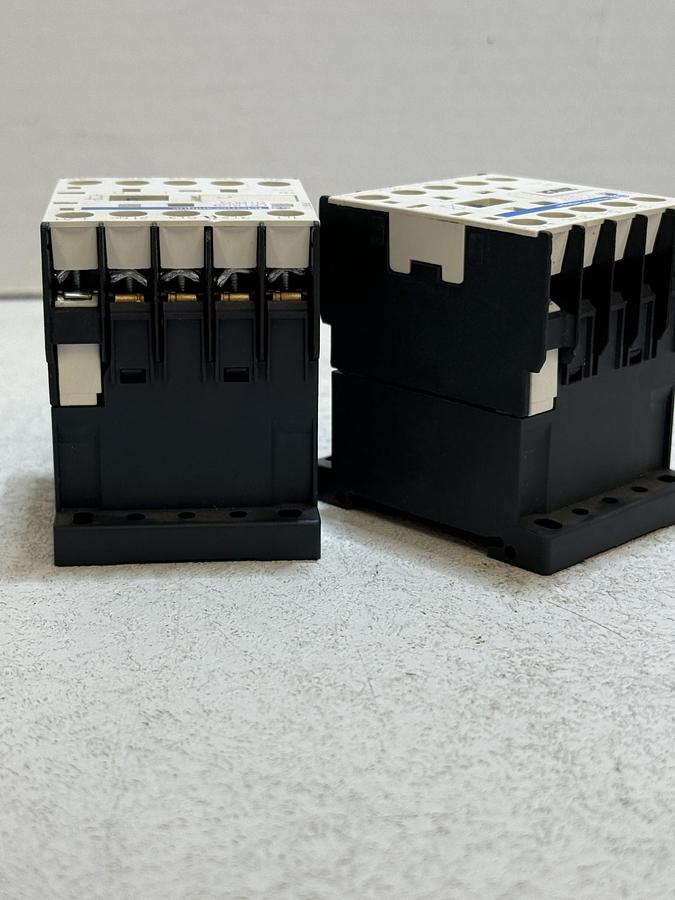

LOT OF 2 Telemecanique LP1K0901BD3 TeSys K Contactors 9A 24VDC 3 Pole GHA-105

*Please read full description prior to purchase*

**eBay policy restricts the display of phone numbers in the listing**

SELLING "AS IS - WHERE IS" AS DESCRIBED

** see all pictures**

elemecanique LP1K0901BD3 — Detailed Specs

The LP1K0901BD3 is a Telemecanique / Schneider Electric TeSys K miniature contactor designed for motor-control and switching applications. Schneider identifies it as a 3-pole, 9A AC-3 contactor with a 24V DC coil and 1 normally closed auxiliary contact.

Electrical specifications

• Manufacturer: Telemecanique / Schneider Electric
• Series: TeSys K
• Part Number: LP1K0901BD3
• Device Type: Miniature contactor
• Poles: 3
• Main contacts: 3 NO
• Auxiliary contact: 1 NC
• Coil voltage: 24V DC
• Coil type: DC standard
• AC-3 current: 9A
• AC-1 current: 20A at ≤440V
• Maximum rated operational voltage: 690V AC
• Motor power: Up to 4 kW at 380–415V AC
• Utilization categories: AC-1, AC-3, AC-4
• Terminal type: Screw terminals

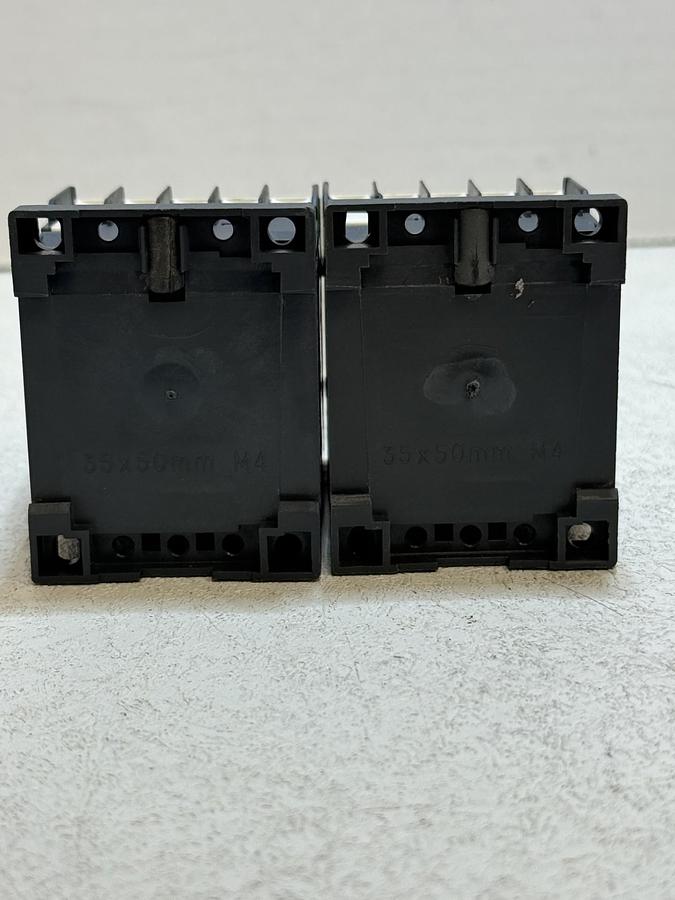

• Mounting: DIN rail or chassis/panel mount
• Built-in suppression: Bidirectional peak-limiting diode
• Impulse withstand voltage: 8 kV
• Operating temperature: approximately -25°C to +50°C

Physical dimensions

• Width: approximately 45 mm / 1.77"
• Height: approximately 58 mm / 2.28"
• Depth: approximately 57 mm / 2.24"
• Weight: approximately 0.225 kg / 0.5 lb

Important identification detail

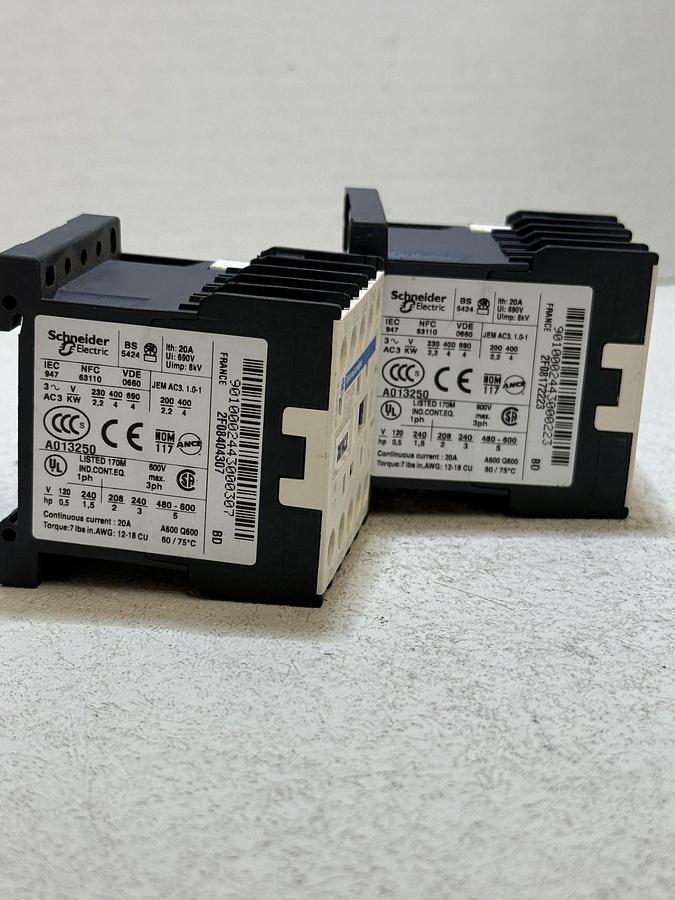

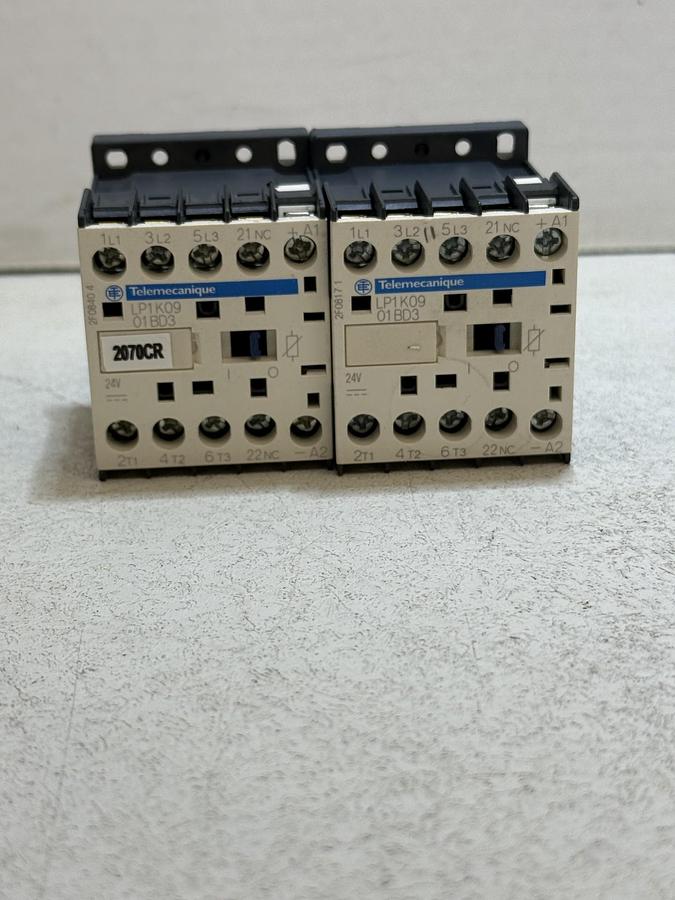

The BD3 version is specifically the 24V DC coil version with an integral suppression device. So if you're photographing the unit, make sure the label showing LP1K0901BD3 is clearly visible.

Note to buyer:

1. Review all photos carefully as they are part of the description per eBay policy.
2. Items that are untested, for parts or repair, or unknown condition are sold as is and are non-returnable.
3. Items are sold as pictured. If it is not shown in the pictures it doesn't come with the item (i.e. power cords, attachments, tooling, etc.)
4. Most listings at the end include a GH and then a number for example (GH119) OR (A19) it is an internal stock reference number and not part of the item's description.

Thanks, Gearhead Surplus
