INFICON VGC403 398-021 3-Channel Vacuum Gauge Controller 90-250VAC

*Please read full description prior to purchase*

**eBay policy restricts the display of phone numbers in the listing**

SELLING "AS IS - WHERE IS" AS DESCRIBED

** see all pictures**

INFICON VGC403 398-021 3-Channel Vacuum Gauge Controller 90-250VAC

Description

INFICON VGC403 three-channel vacuum gauge controller, part number 398-021. This industrial measurement and control unit is designed to power, monitor, and display readings from compatible INFICON vacuum sensors used in laboratory, semiconductor, vacuum-coating, research, and industrial process systems.

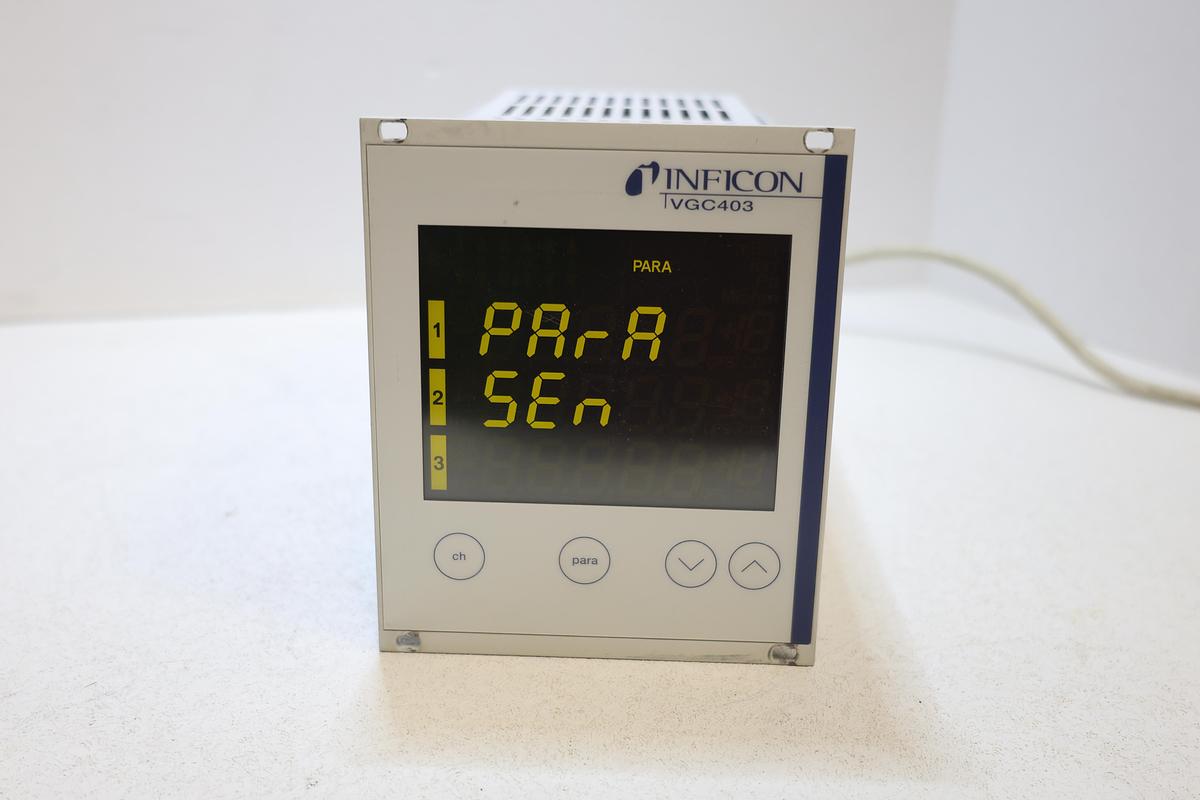

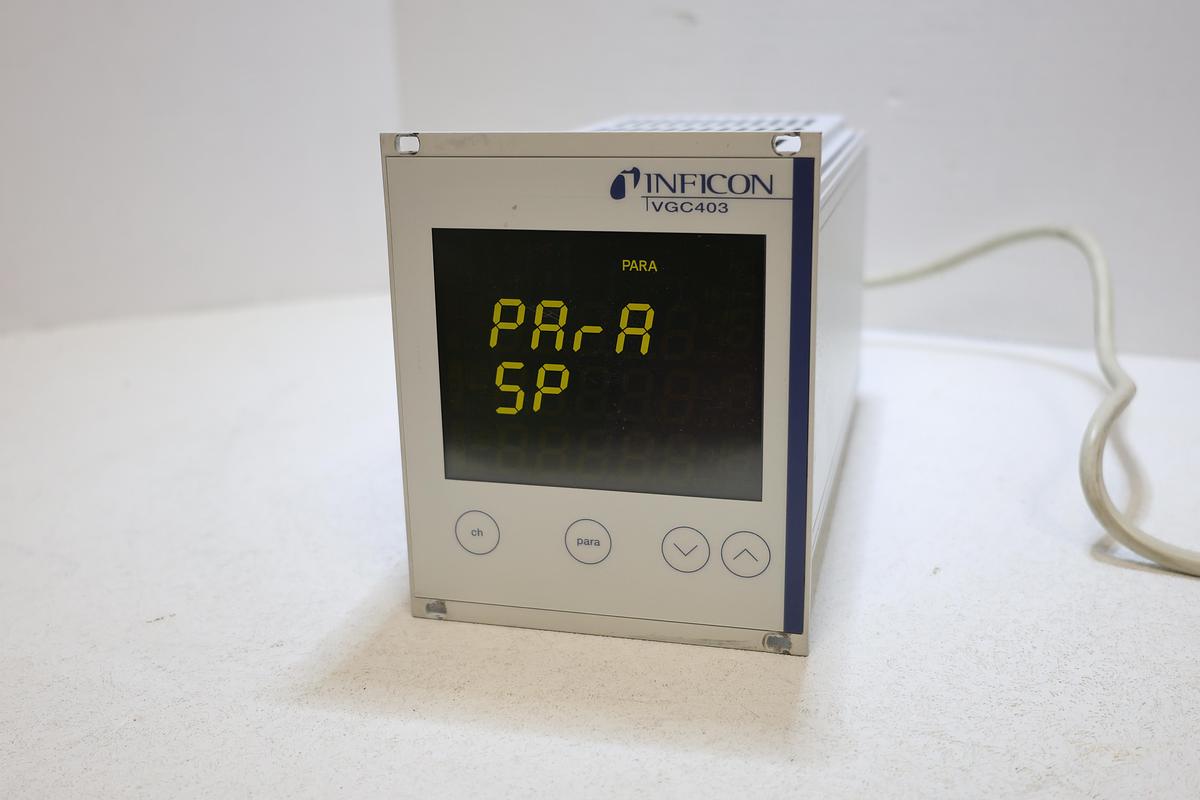

This controller was removed from a functional system and is in good used condition. It powers on properly, the display illuminates clearly, and the front-panel controls respond as shown. The “noSEn” indication shown in the photographs means no external sensors are connected; it is not a controller fault.

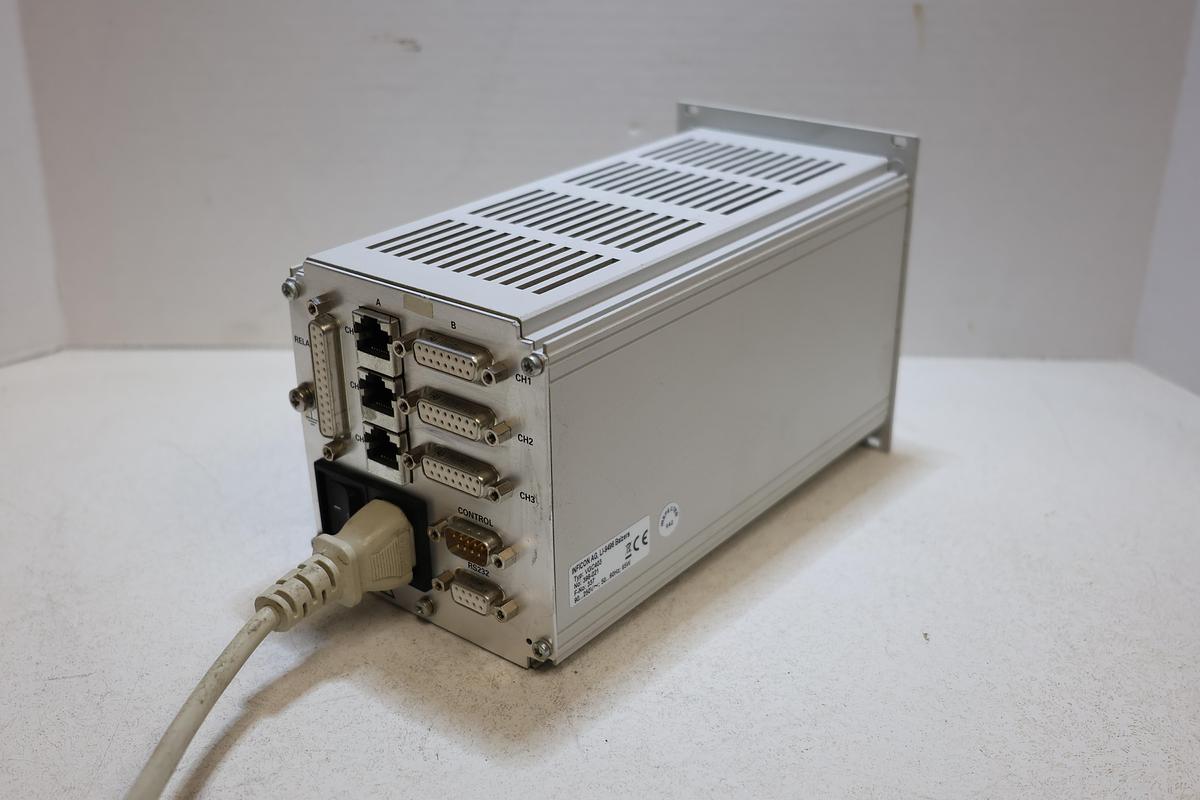

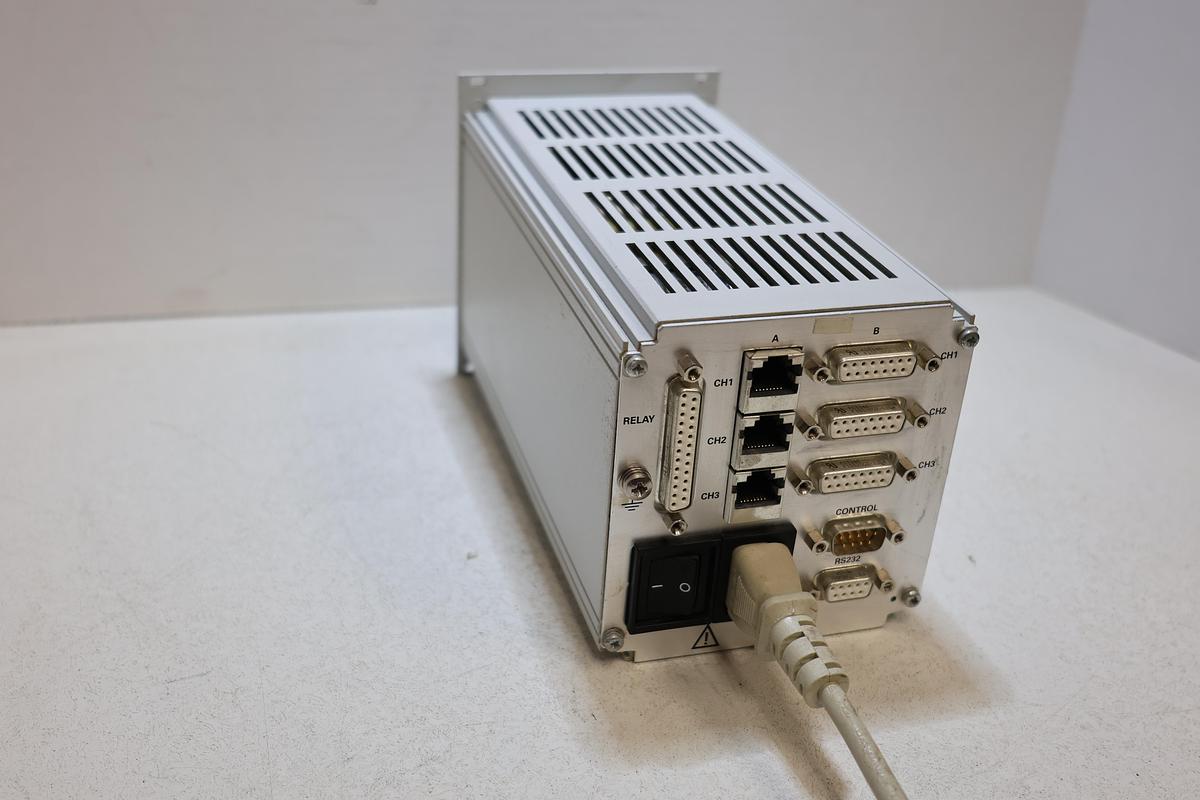

The VGC403 provides three independently monitored sensor channels, six configurable switching functions, analog and recorder outputs, relay control, and RS232C communication. Each channel provides both RJ45 and 15-pin D-sub connections, which are internally connected in parallel.

Key Features

• Three independent vacuum-gauge channels
• Large, easy-to-read digital display
• Six freely assignable switching/setpoint functions
• Selectable pressure units: mbar, Pa, Torr, and Micron
• Front-panel channel selection and parameter controls
• RS232C computer and remote-control interface
• Three 0–10 VDC analog outputs—one per channel
• Programmable 0–10 VDC recorder output
• Floating changeover relay contacts
• Desktop, control-panel, or 19-inch rack installation
• Gas correction settings for N₂, Ar, H₂, or user-defined factors

Specifications

• Manufacturer: INFICON AG
• Model: VGC403
• Part number: 398-021
• Equipment type: Vacuum gauge measurement and control unit
• Number of channels: 3
• Switching functions: 6
• Input voltage: 90–250 VAC
• Frequency: 50/60 Hz
• Maximum power consumption: 65 W
• Sensor supply: 24 VDC ±5%, 500 mA
• Measurement range: Sensor dependent
• Measurement rate: 50 readings per second
• Display rate: 10 readings per second
• A/D resolution: Greater than 16-bit
• Sensor inputs: RJ45 and female 15-pin D-sub per channel
• Analog outputs: Three 0–10 VDC outputs
• Recorder output: Programmable 0–10 VDC
• Computer interface: RS232C
• Baud rates: 9600, 19,200, or 38,400
• Relay connection: Female 25-pin D-sub
• Relay rating: 60 VDC at 0.5 A maximum or 30 VAC at 1 A maximum
• Operating temperature: 5–50°C
• Storage temperature: -20–60°C
• Protection rating: IP20
• Dimensions: Approximately 106.3 × 128.5 × 207 mm
• Weight: Approximately 1.16 kg
• Mounting height: 3U/3 HE

Compatible INFICON Gauge Families

Compatible sensor series include:

• Pirani: PSG100, PSG101, PSG400, PSG500, PSG502, PSG510, PSG512, PSG550, PSG552, PSG554
• Pirani/Capacitance: PCG400, PCG550, PCG552, PCG554
• Cold Cathode: PEG100
• Cold Cathode/Pirani: MPG400 and MPG401
• Capacitance: CDG025, CDG045, CDG100, CDG160D and related “D” versions
• Hot Ionization/Pirani: BPG400, BPG402, and HPG400
• Hot Ionization/Pirani/Capacitance: BCG450

Only one sensor should be connected to each channel at a time. Complete specifications and compatibility were verified against the INFICON VGC402/VGC403 operating manual.

Condition

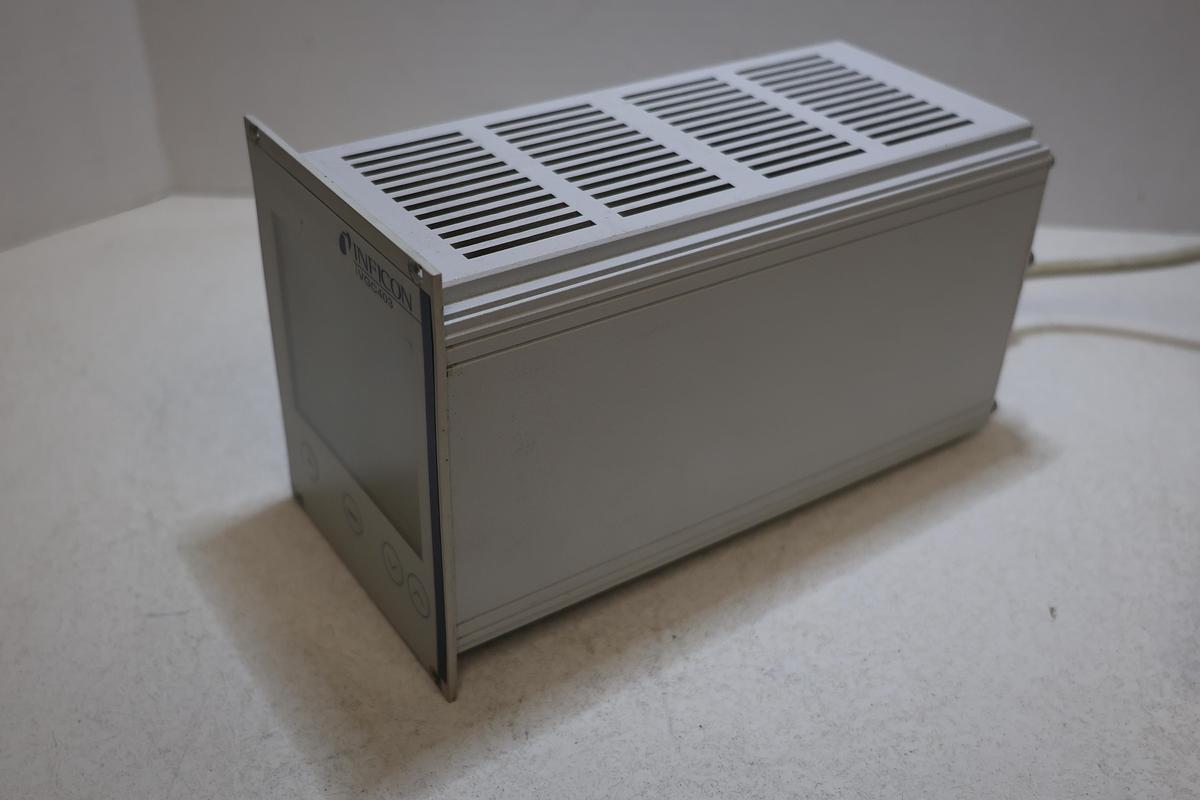

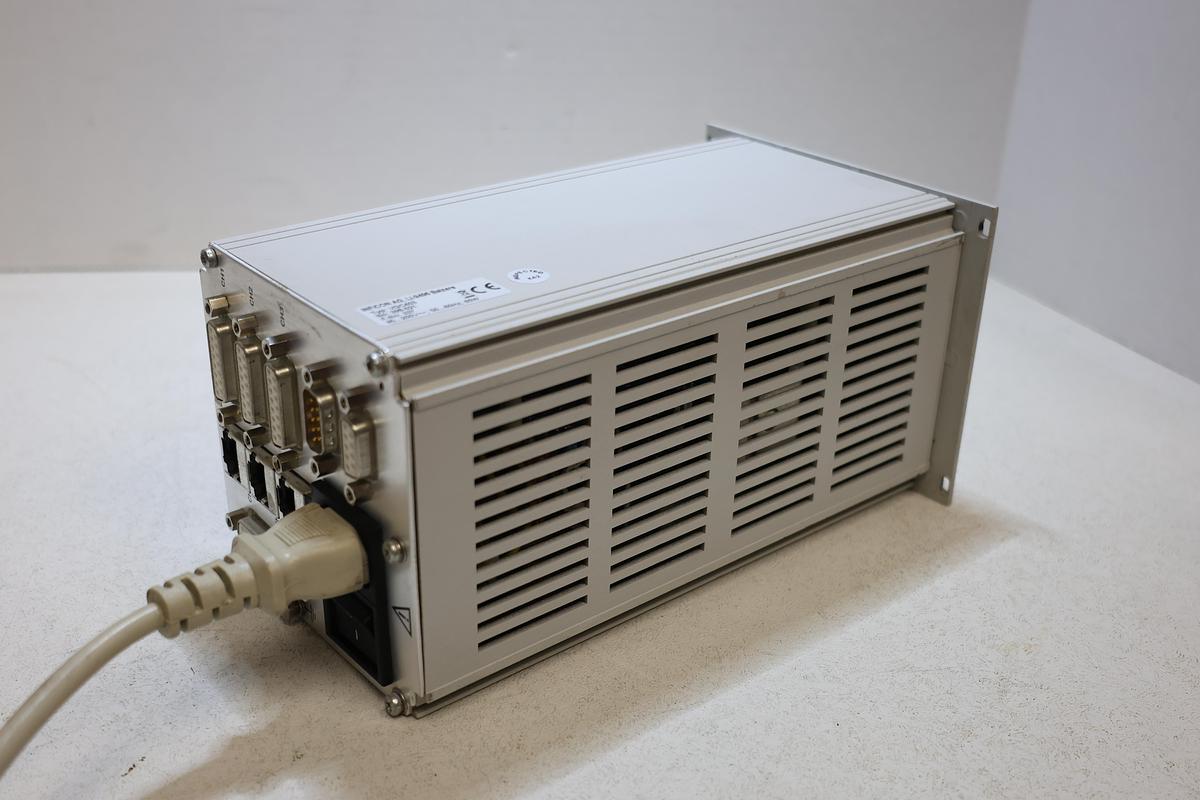

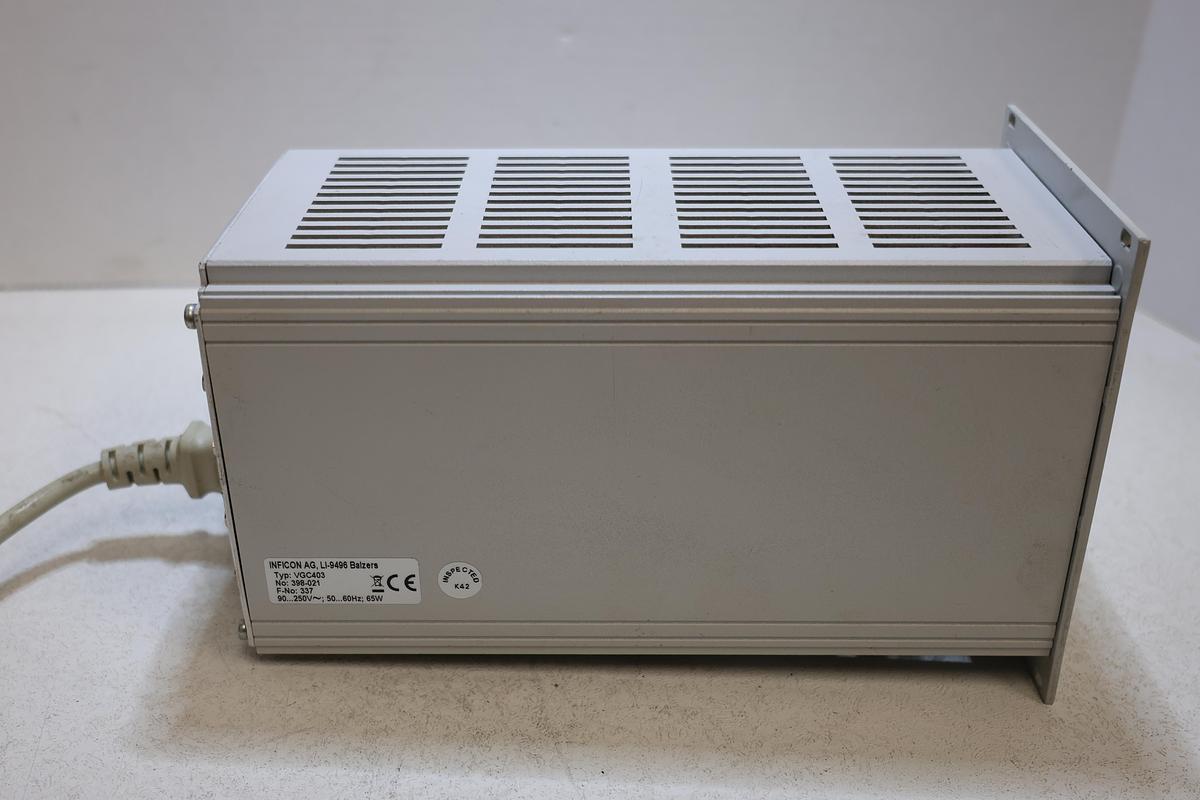

Used – removed from a functional system. The controller powers on, the display operates, and the front-panel controls respond. Normal cosmetic wear, light scratches, and minor marks are present from previous installation and use. No vacuum sensors were connected during the photographed power-on check.

Please carefully review all photographs for the exact condition and connector configuration.

Included

• INFICON VGC403 controller
• Power cord shown

Vacuum sensor heads, sensor cables, rack hardware, manuals, and additional accessories are not included.
