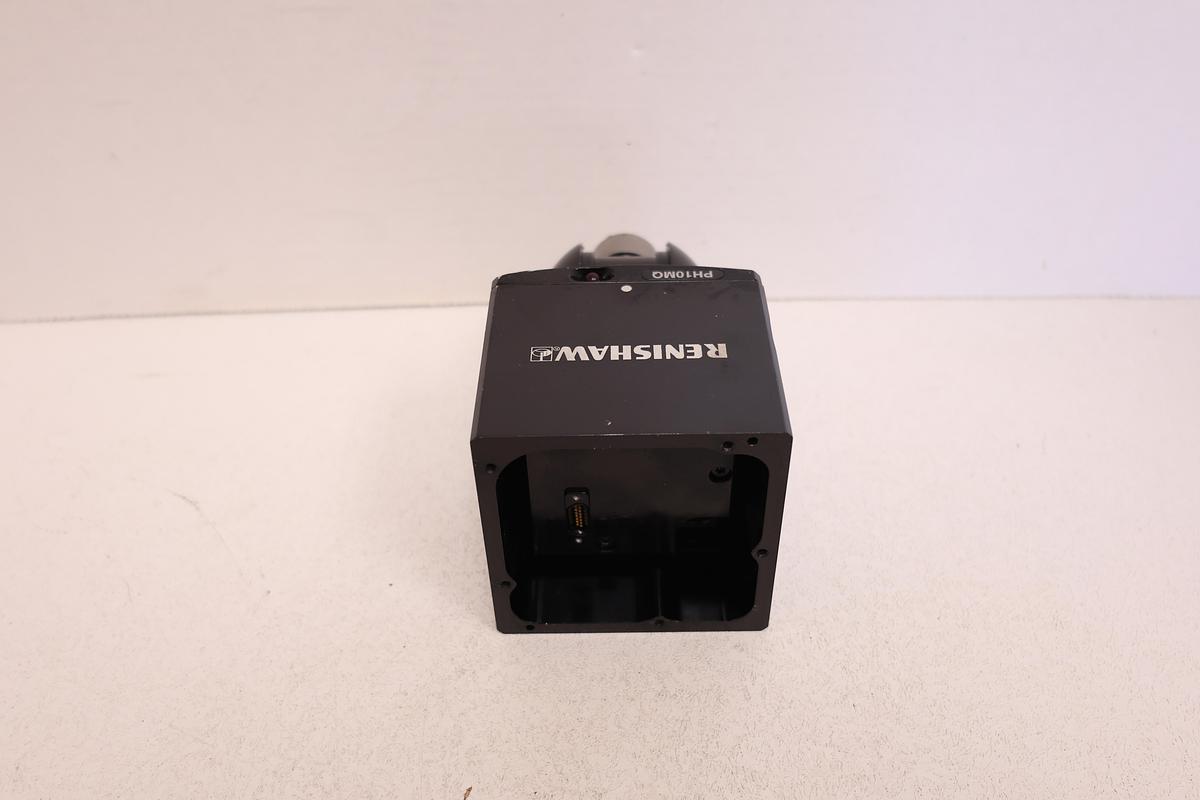

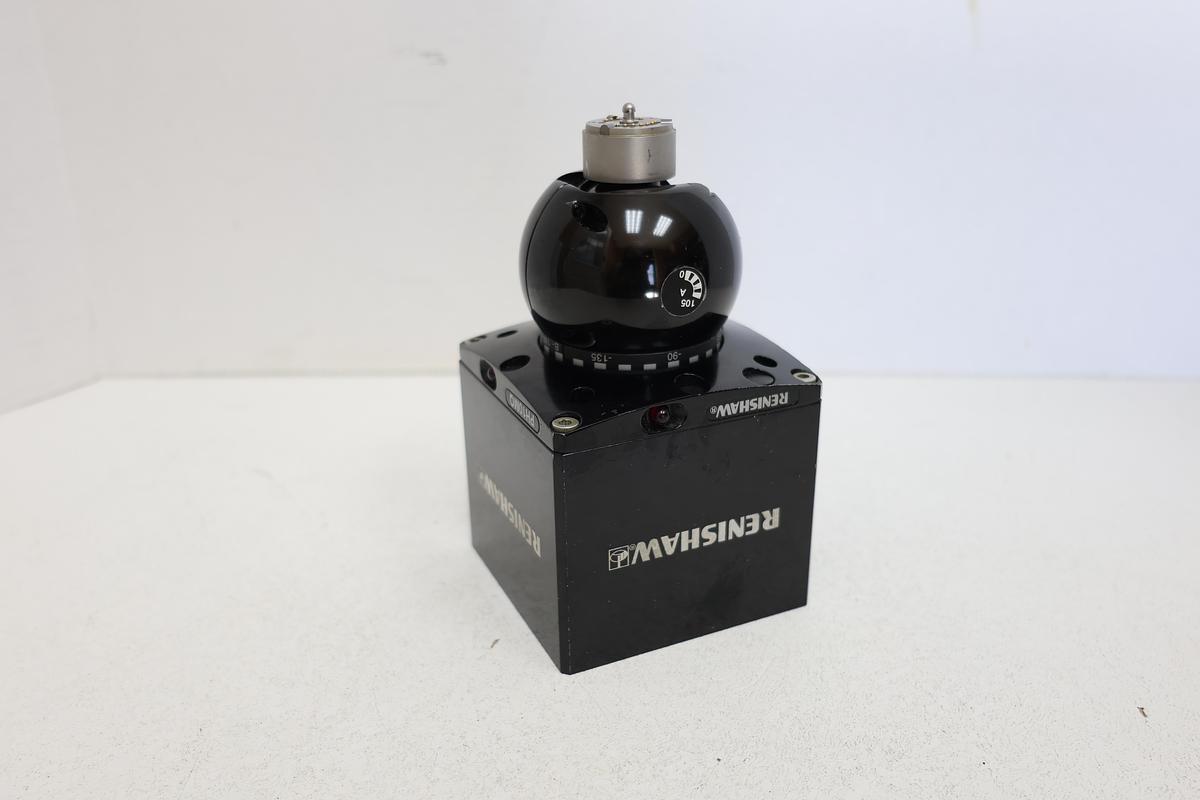

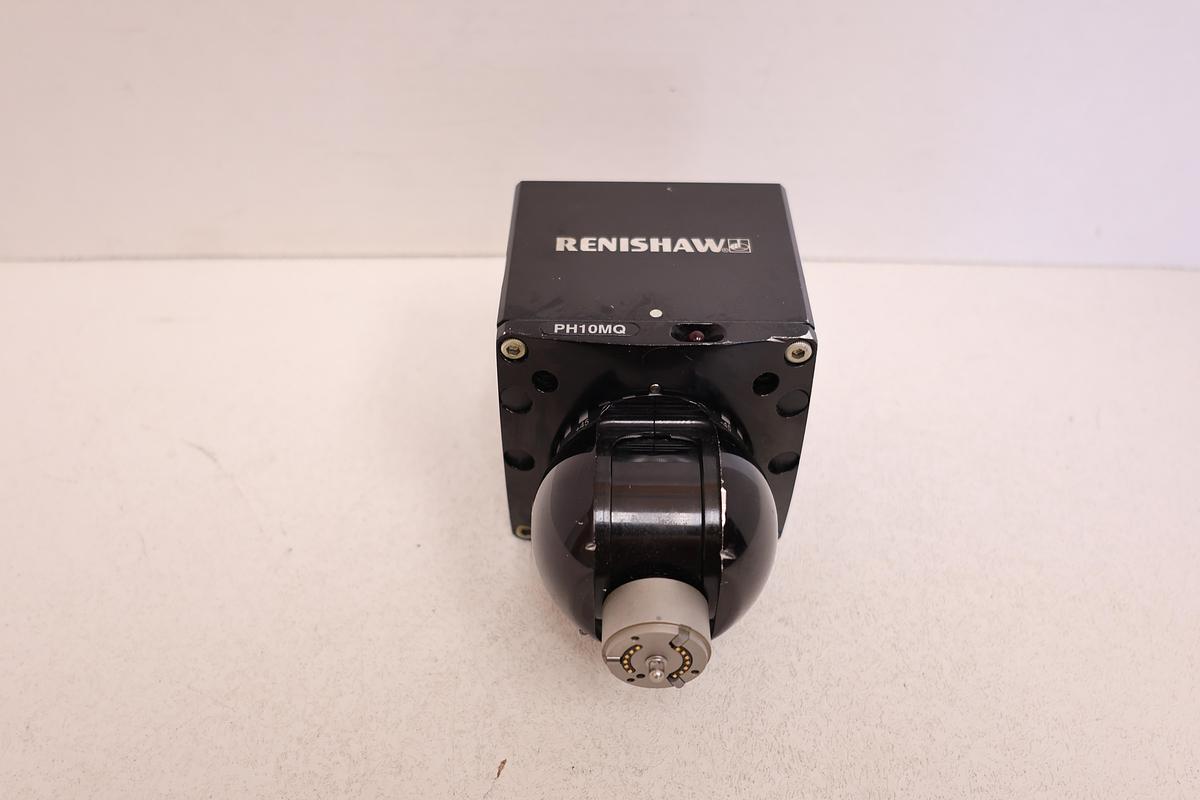

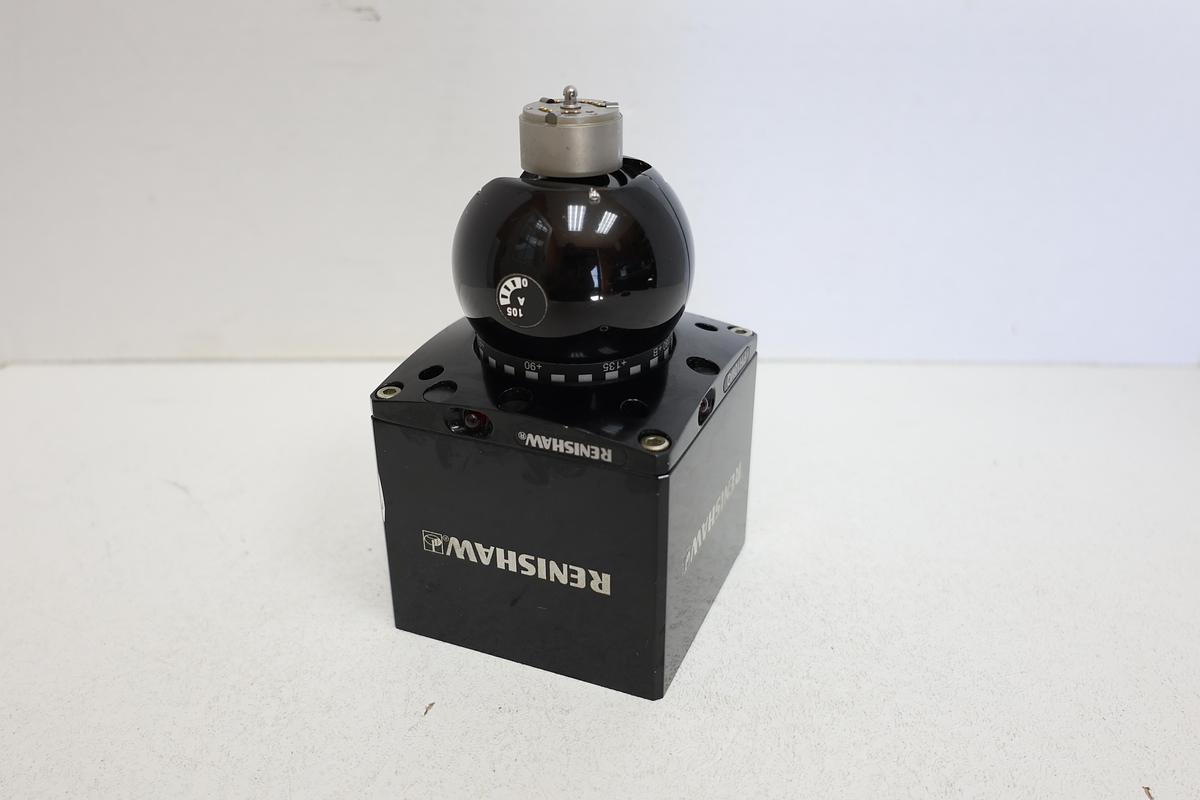

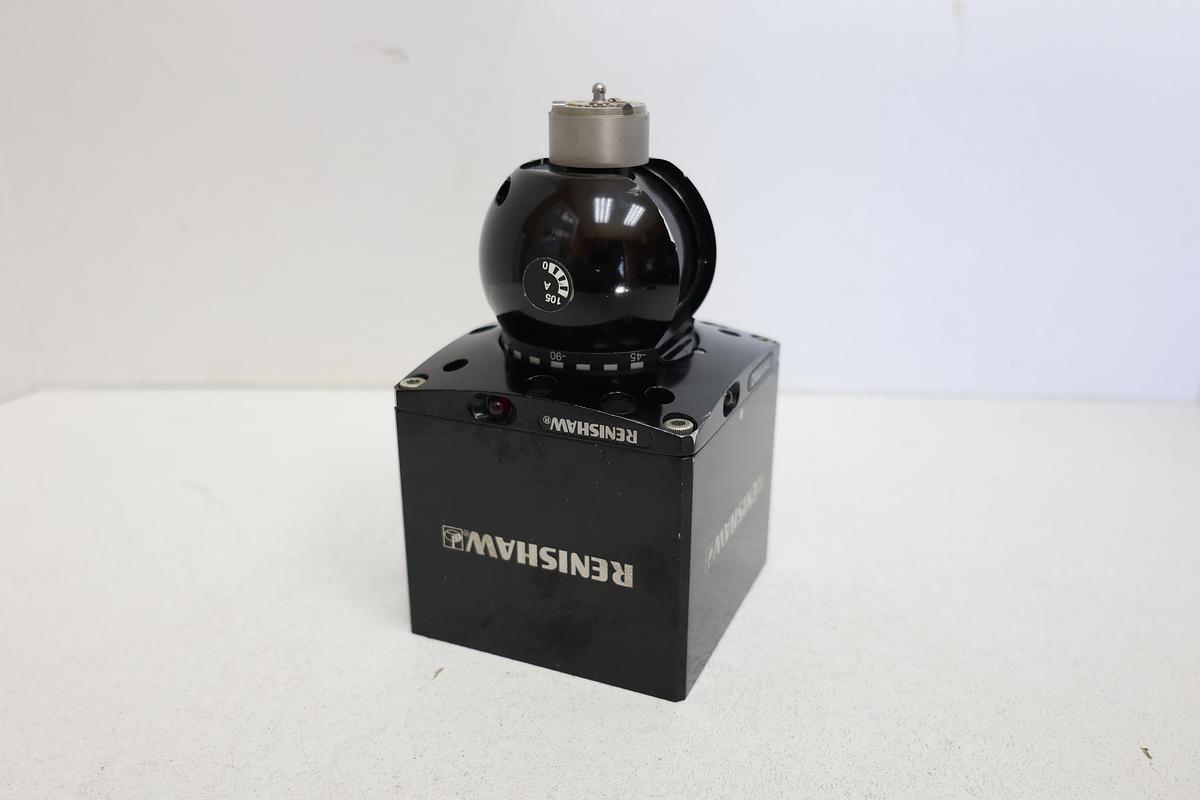

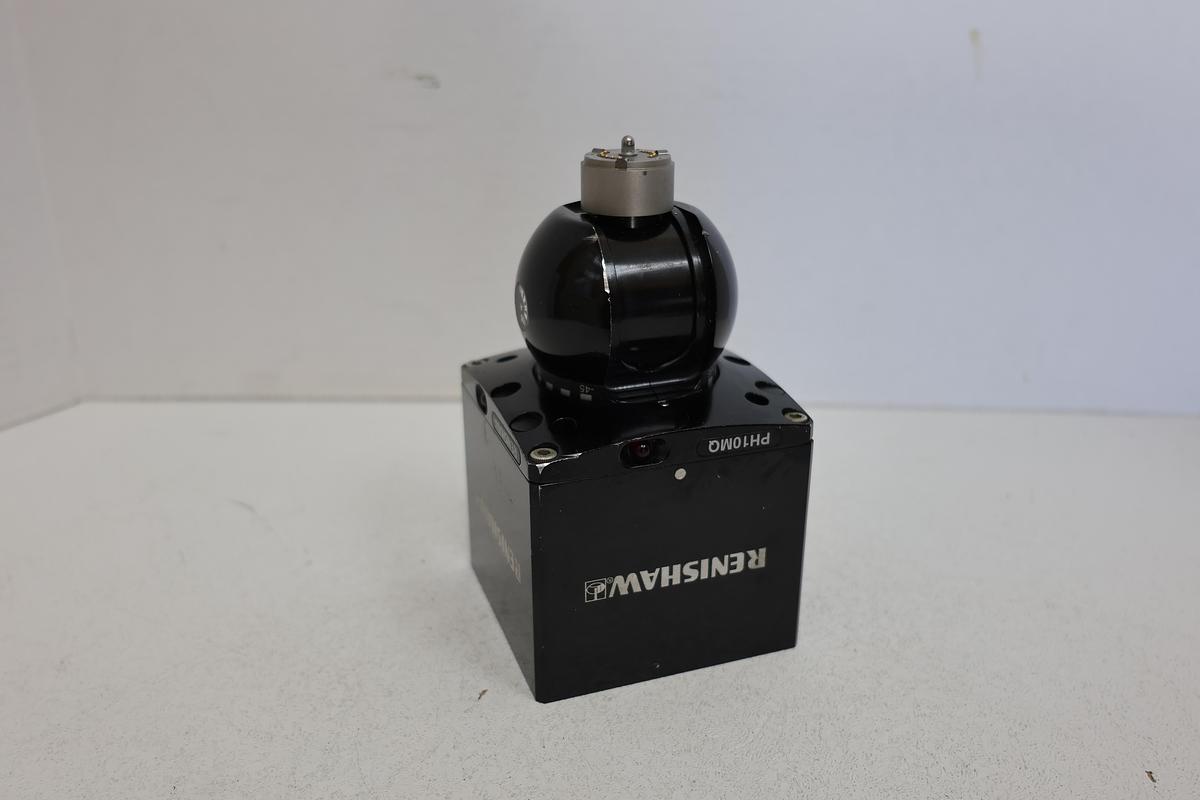

Renishaw PH10MQ Motorised Probe Head for CMM

Condition: New / Unused

The Renishaw PH10MQ is a precision motorised indexing probe head designed for use with compatible Coordinate Measuring Machines (CMMs). It provides automatic probe positioning and 720 repeatable angular positions, making it ideal for complex inspection applications requiring multiple probe orientations.

Key Features

• Genuine Renishaw PH10MQ motorised probe head
• Designed for DCC Coordinate Measuring Machines (CMMs)
• Quill-mounted design
• Renishaw multiwired Autojoint connection
• 720 programmable positions
• 7.5° indexing increments
• Excellent positioning repeatability
• Compatible with a range of Renishaw multiwired probes
• Supports automatic probe changing with compatible ACR1 and ACR3 systems
• Can accommodate extension bars up to 300 mm
• Compact design for CMM applications

Technical Specifications

SpecificationDetailsManufacturerRenishawModelPH10MQTypeMotorised indexing probe headApplicationCoordinate Measuring Machines (CMMs)MountingQuill-mountedProbe ConnectionMultiwired AutojointNumber of Positions720Indexing Increment7.5°A-Axis Range0° to 105°B-Axis Range-180° to +180°Position Repeatability<0.4 µm (2σ)WeightApprox. 730 gProtection RatingIP30Maximum Standard Extension300 mm

Compatible Probes

The PH10MQ is designed to work with compatible Renishaw multiwired probes, including:

• SP25M scanning probe
• TP7M touch-trigger probe
• SP600M analogue scanning probe

It can also be used with compatible M8-mounted probes when the appropriate adaptor is fitted.

Automatic Probe Changing

The PH10MQ can be integrated with compatible Renishaw ACR1 and ACR3 automatic probe-changing systems, allowing different probes or configurations to be selected automatically during a CMM inspection program.

Condition

New / Unused

This is a new, unused Renishaw PH10MQ probe head.

Please confirm compatibility with your specific CMM, controller, probe, and mounting configuration before purchasing.

Product Summary

The Renishaw PH10MQ provides reliable, automated probe positioning for precision CMM inspection. With 720 indexing positions, 7.5° increments, high positioning repeatability, and a multiwired Autojoint connection, it is well suited to demanding dimensional inspection applications.

Manufacturer: Renishaw

Model: PH10MQ

Condition: New / Unused

Application: CMM Inspection

Probe Interface: Multiwired Autojoint
