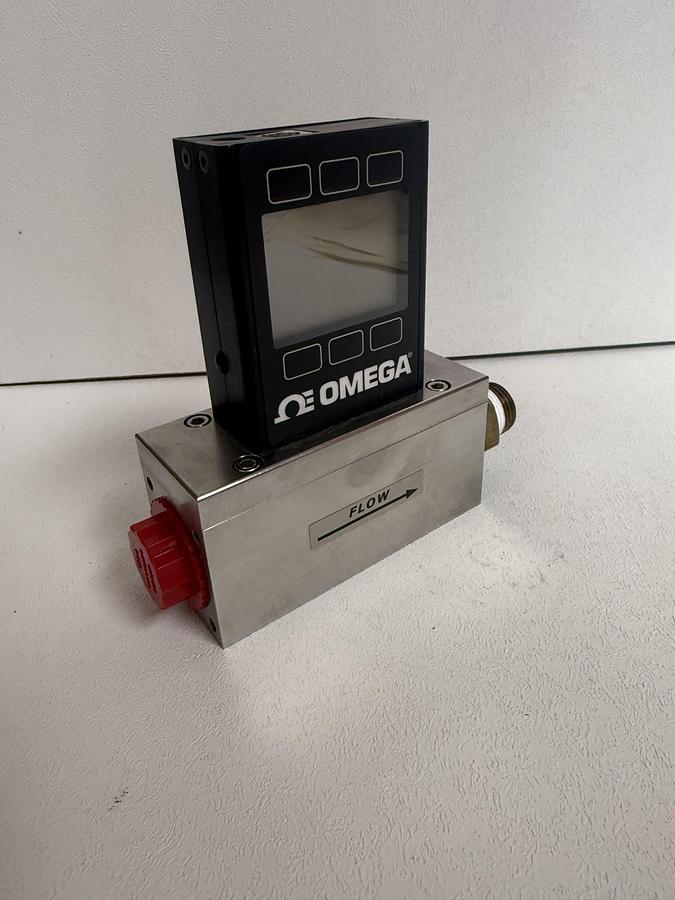

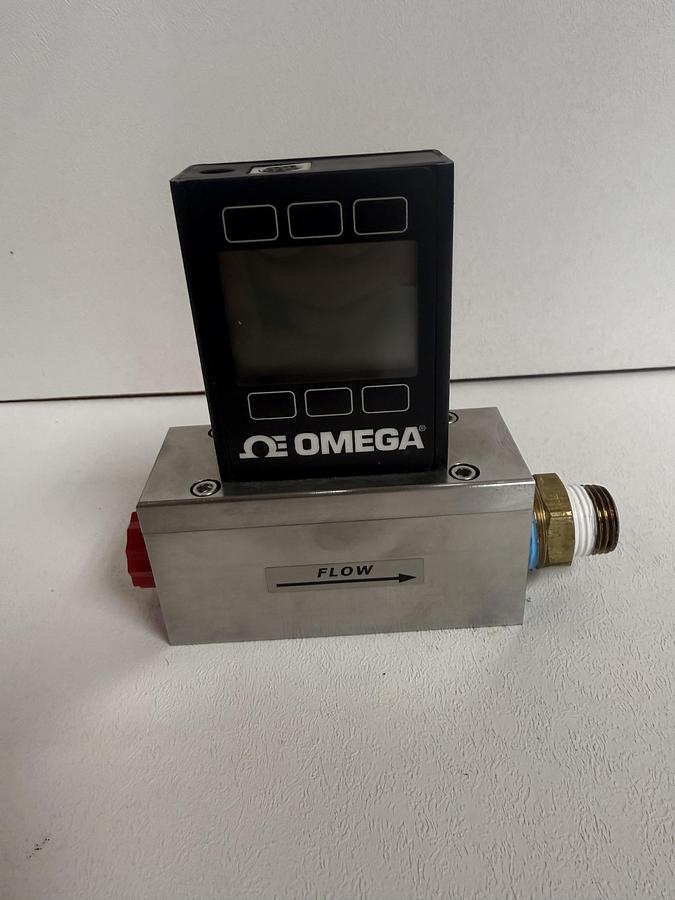

Omega Flow Meter FMA-1613A

Omega Flow Meter FMA-1613A GHC-36

*Please read full description prior to purchase*

**eBay policy restricts the display of phone numbers in the listing**

Visit our page https://www.gearheadsurplus.com

SELLING "AS IS - WHERE IS" AS DESCRIBED

** see all pictures**

Specifications

Accuracy: ±(0.8% of rdg + 0.2% FS)

Repeatability: ±0.2%

Turndown Ratio: 200:1

Response Time: 10 ms typical default response time for 63.2% of a step change. A variable register allows response time to be field adjustable to a certain extent via RS232 communications. The primary trade-off for response time is signal noise

Output: 0 to 5 Vdc standard

Operating Temperature: -10 to 50°C (14 to 122°F)

Zero Shift: 0.02% FS/°C/atm

Span Shift: 0.02% FS/°C/atm

Humidity Range: 0 to 100% non-condensing

Pressure (Maximum): 145 psig

Measurable Flow Rate: 125% FS

Supply Voltage: 7 to 30 Vdc (15 to 30 Vdc for 4 to 20 mA output)

Supply Current: 35 mA typical current draw; 100 mA available supply recommended

Cable Connection: 8-pin mini DIN

Wetted Parts: 302 and 303 SS, FKM, heat cured silicone RTV, glass reinforced PPS, heat cured epoxy, aluminum, gold, brass, 430 FR stainless (416 stainless steel on large sizes), silicon, glass

•Up to 18 Hour Battery Charge on Portable “-B” Models

•Ranges of 0 to 0.5 SCCM Up to 0 to 3000 SLM

•Reports Mass Flow, Volumetric Flow, Temperature, and Pressure

•<10 ms Response Time—Field Adjustable

•130+ Gas Calibrations Including Pure and Mixed Gases

•Pressure, Temperature and Volumetric or Mass Flow Simultaneously Displayed

•NIST 5-Point Certificate Included U No Straight Runs of Pipe Required

•No Warm-Up Time U Turndown Ratio of 200:1 (0.5% Maximum Flow)

•RS232 Standard

•Custom Live Gas Blend Programming

•Store Up to 20 User Defined Gas Blends

Note to buyer:

1. Review all photos carefully as they are part of the description per eBay policy.
2. Items that are untested, for parts or repair, or unknown condition are sold as is and are non-returnable.
3. Items are sold as pictured. If it is not shown in the pictures it doesn't come with the item (i.e. power cords, attachments, tooling, etc.)
4. Most listings at the end include a GH and then a number for example (GH119) OR (A19) it is an internal stock reference number and not part of the item's description.

Thanks, GearheadSurplus
