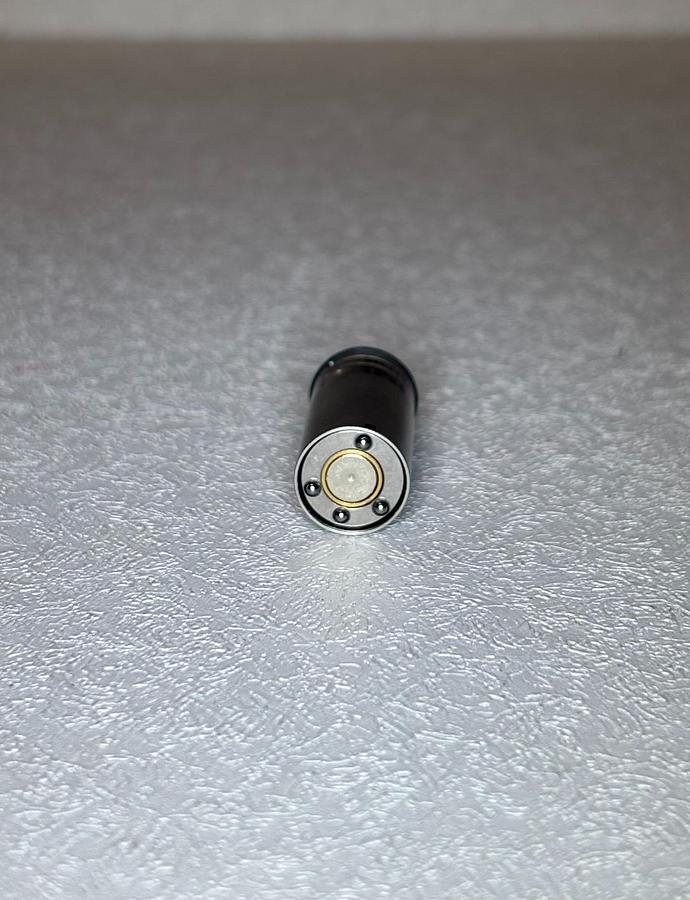

(NEW) Renishaw TP200 High-Accuracy Touch Trigger Probe Body GHA-62

*Please read full description prior to purchase*

**eBay policy restricts the display of phone numbers in the listing**

Visit our page https://www.gearheadsurplus.com

SELLING "AS IS - WHERE IS" AS DESCRIBED

** see all pictures**

Key Specifications

• Manufacturer: Renishaw
• Model: TP200
• Principal Application: DCC CMM high-accuracy measurement
• Sense Directions: 6-axis (±X, ±Y, ±Z)

Accuracy & Repeatability

• Unidirectional Repeatability (2σ):
• Trigger level 1: 0.40 µm (0.000016 in)
• Trigger level 2: 0.50 µm (0.00002 in)
• XY (2D) Form Measurement Deviation:
• Trigger level 1: ±0.80 µm (0.000032 in)
• Trigger level 2: ±0.90 µm (0.000036 in)
• XYZ (3D) Form Measurement Deviation:
• Trigger level 1: ±1.0 µm (0.00004 in)
• Trigger level 2: ±1.40 µm (0.000056 in)
• Repeatability of Stylus Change:
• With SCR200 rack: ±0.50 µm max
• Manual: ±1.0 µm max

Trigger & Overtravel Forces

• Trigger Force (at stylus tip):
• XY plane (all modules): 0.02 N
• Z-axis (all modules): 0.07 N
• Overtravel Force @ 0.50 mm displacement:
• XY plane (SF / EO modules): 0.2 – 0.4 N
• XY plane (LF module): 0.1 – 0.15 N
• Z-axis (SF / EO modules): 4.90 N
• Z-axis (LF module): 1.60 N

Physical & Mounting Details

• Weight (probe sensor & module): 22 g (0.78 oz)
• Mounting Method: M8 thread
• Maximum Extension (PH10 PLUS head): 300 mm (11.81 in)
• Maximum Recommended Stylus Length (M2 range):
• SF / EO module:
• 50 mm (1.97 in) steel to 100 mm (3.94 in) GF
• LF module:
• 20 mm (0.79 in) steel to 50 mm (1.97 in) GF

Compatibility

• Suitable Interface: PI 200-3, UCC
• Stylus Module Changing Rack: SCR200
• Stylus Range: M2

Condition

• Condition: [New / Used / Surplus — select as applicable]
• Includes only items shown in photos
