Caproni 20C16X030UVIT Hydraulic Gear Pump 16cc SAE A Group 20 Viton Used Working GHA-187

*Please read full description prior to purchase*

**eBay policy restricts the display of phone numbers in the listing**

Visit our page https://www.gearheadsurplus.com

SELLING "AS IS - WHERE IS" AS DESCRIBED

** see all pictures**

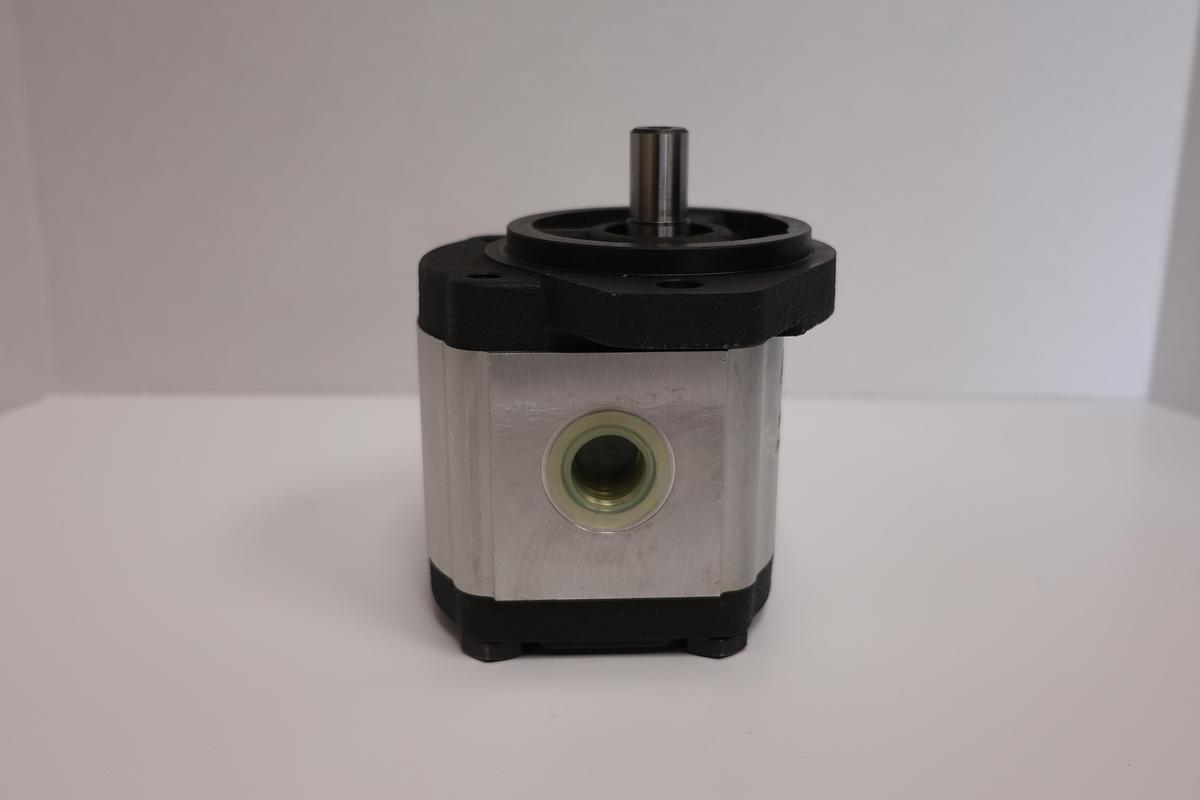

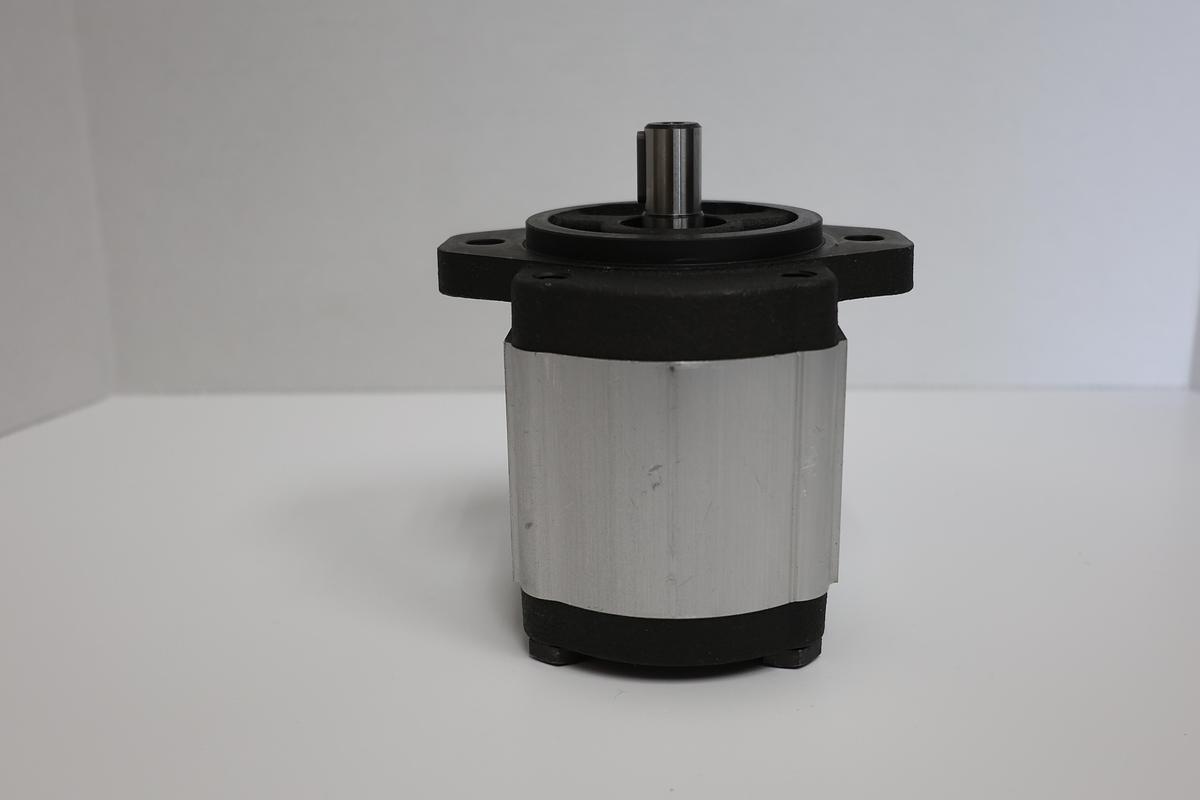

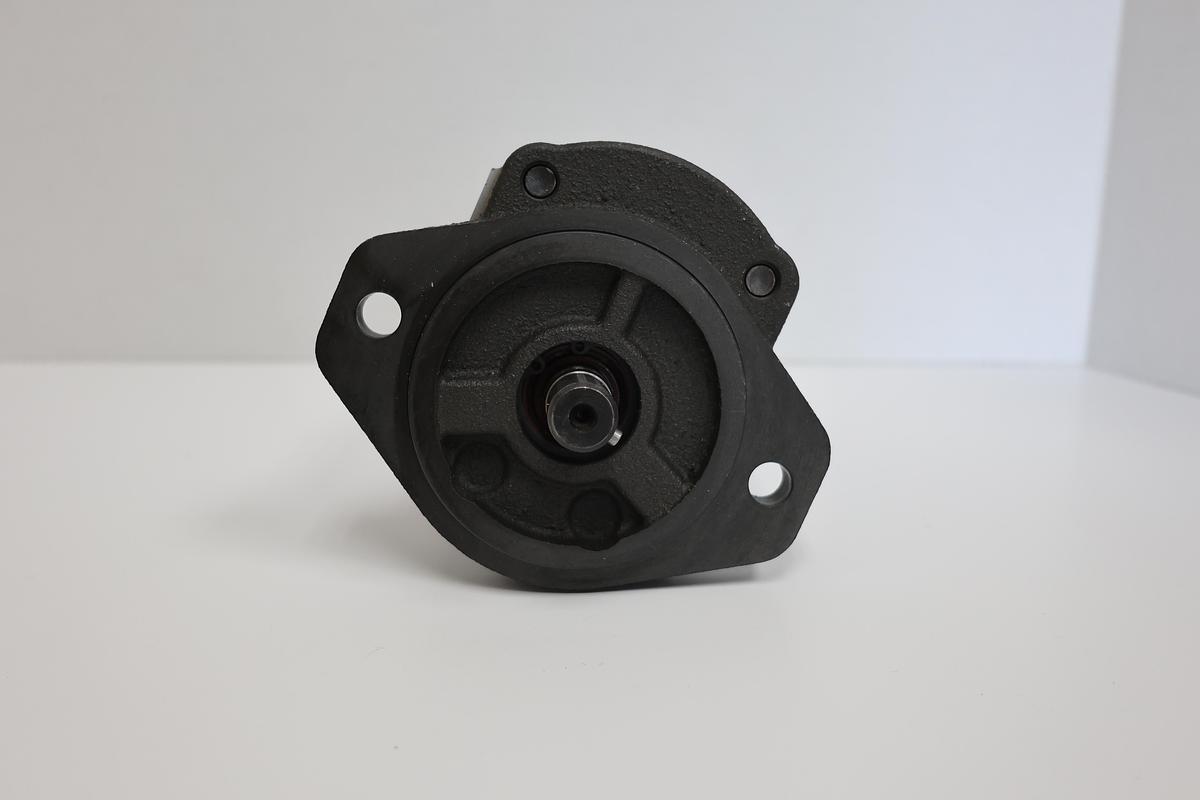

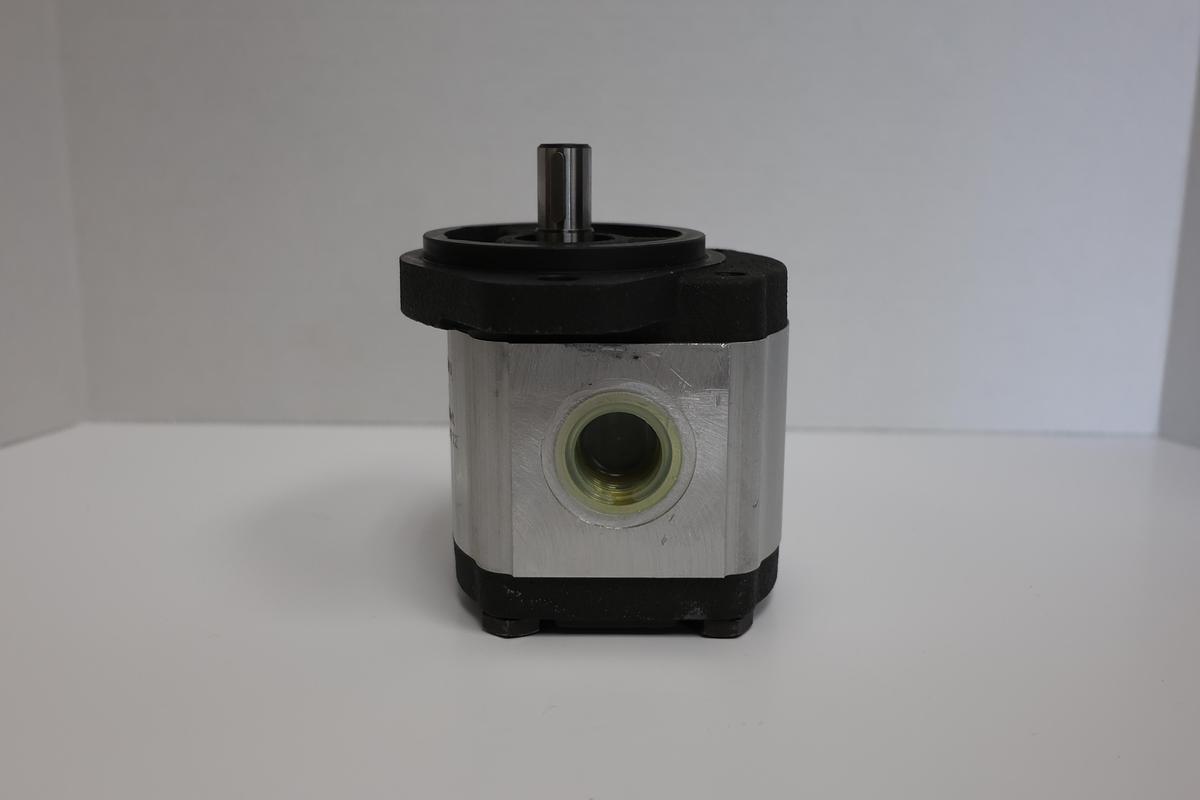

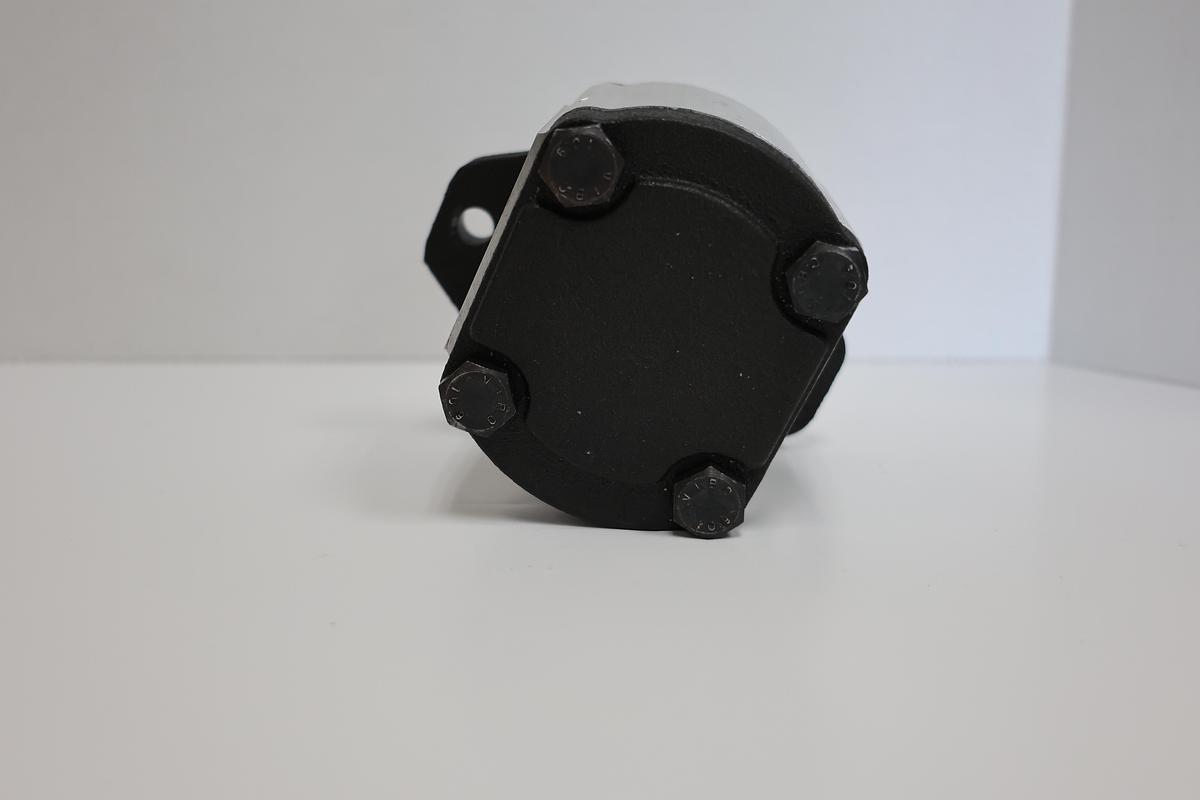

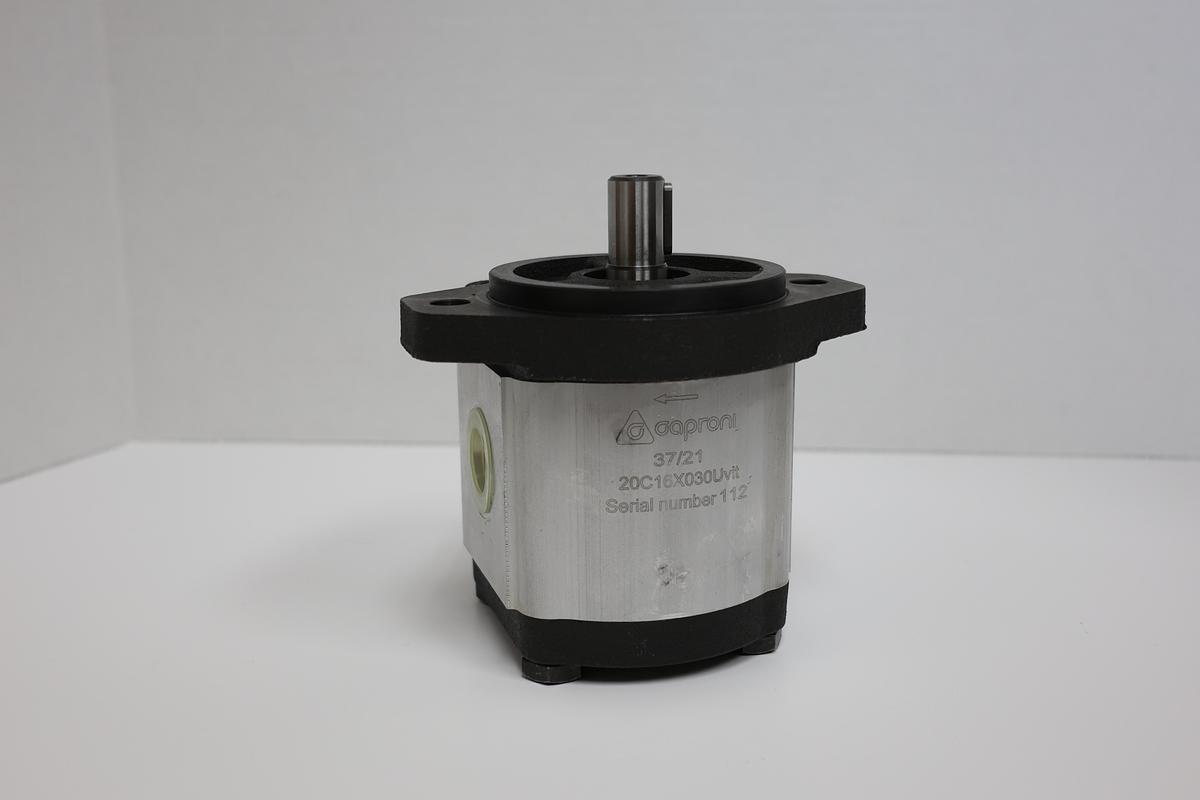

Caproni Hydraulic Gear Pump – Model 20C16X030UVIT (Used, removed from working system)

This is a Group 20 external gear pump, commonly used in hydraulic power units, agricultural machinery, mobile equipment, and industrial systems.

Description

Used Caproni hydraulic gear pump 20C16X030UVIT removed from a fully functional hydraulic system.

Key Specifications

Specification Details Model 20C16X030UVIT. Manufacturer: Caproni, Type: External Gear Pump, Group 20, Displacement: 16 cc/rev, Rotation: Clockwise (RH) – viewed from shaft side, Max Continuous Pressure: 250 bar (P1 pressure), Max Speed: 2500 RPM, Mounting: Flange SAE-A 2 bolt flange, Shaft Type: Straight keyed shaft, Shaft Diameter: 15.85 mm, Ports: Metric threaded ports, Seal Type: Viton seals (“UVIT” indicates Viton seal version),Construction: Aluminum body / cast iron wear parts.

Rotation, shaft, pressure, flange, and shaft diameter match the 20C16X030 specification listed by Hydrocap for this series.

Seal Information

UVIT / VIT = Viton seals

This means the pump is fitted with Viton (FKM) shaft and body seals, preferred for:

• higher temperature operation
• synthetic hydraulic oils
• better chemical resistance
• longer seal life vs standard NBR seals

Useful when used in demanding hydraulic systems or hotter operating environments.

Typical Identification of “X030”

The X030 code usually refers to:

• SAE-A 2 bolt flange
• straight keyed shaft
• standard front mounting
• clockwise rotation

This is one of the most common Caproni Group 20 configurations.

Note to buyer:

1. Review all photos carefully as they are part of the description per eBay policy.
2. Items that are untested, for parts or repair, or unknown condition are sold as is and are non-returnable.
3. Items are sold as pictured. If it is not shown in the pictures it doesn't come with the item (i.e. power cords, attachments, tooling, etc.)
4. Most listings at the end include a GH and then a number for example (GH119) OR (A19) it is an internal stock reference number and not part of the item's description.

Thanks, GearheadSurplus
