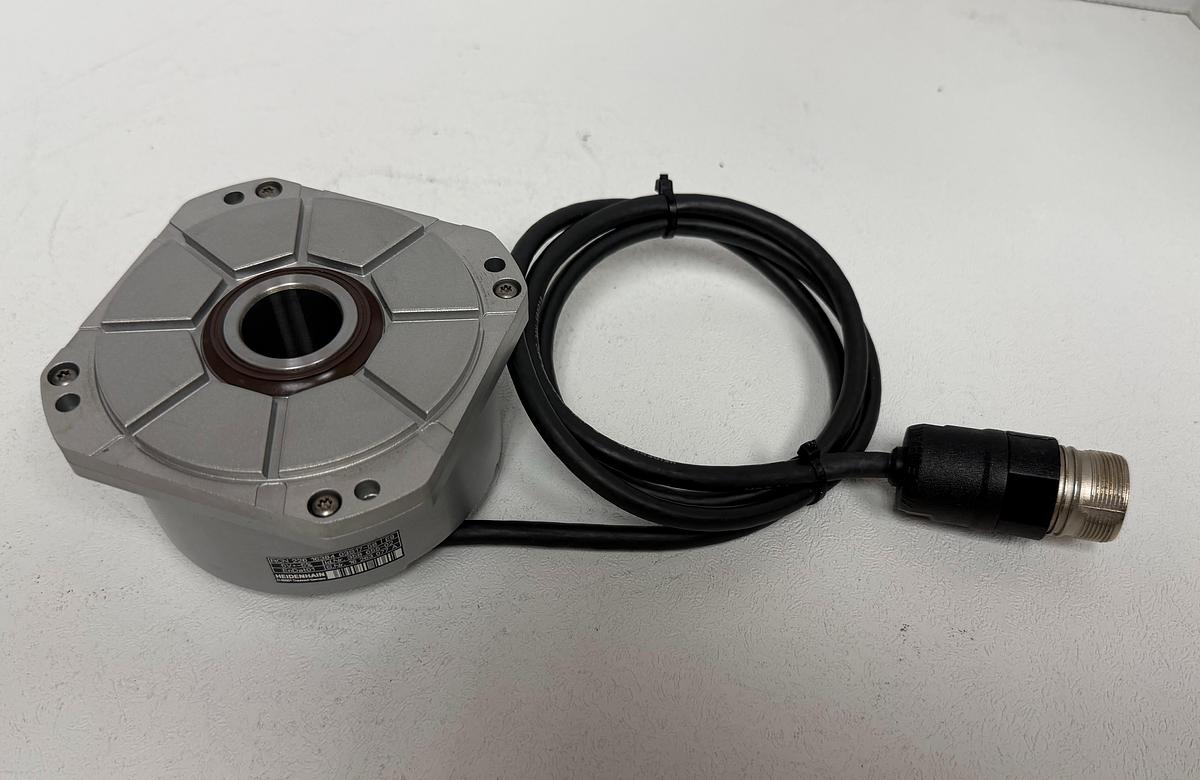

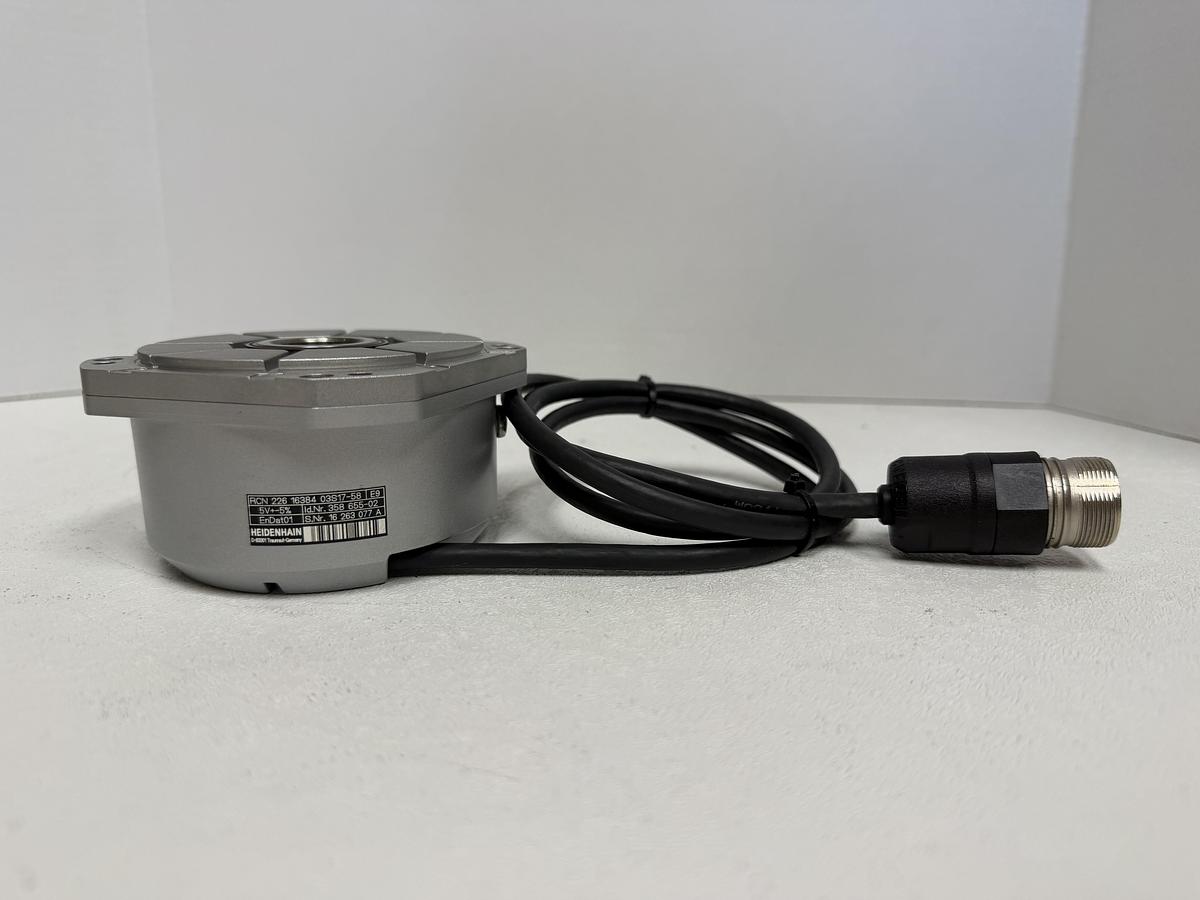

Heidenhain RCN 226 Rotary Encoder 16384 03S17-58 E9 | Id.Nr. 358 655-02 | GHA-178

*Please read full description prior to purchase*

**eBay policy restricts the display of phone numbers in the listing**

Visit our page https://www.gearheadsurplus.com

SELLING "AS IS - WHERE IS" AS DESCRIBED

** see all pictures**

Key Specifications (from manufacturer data):

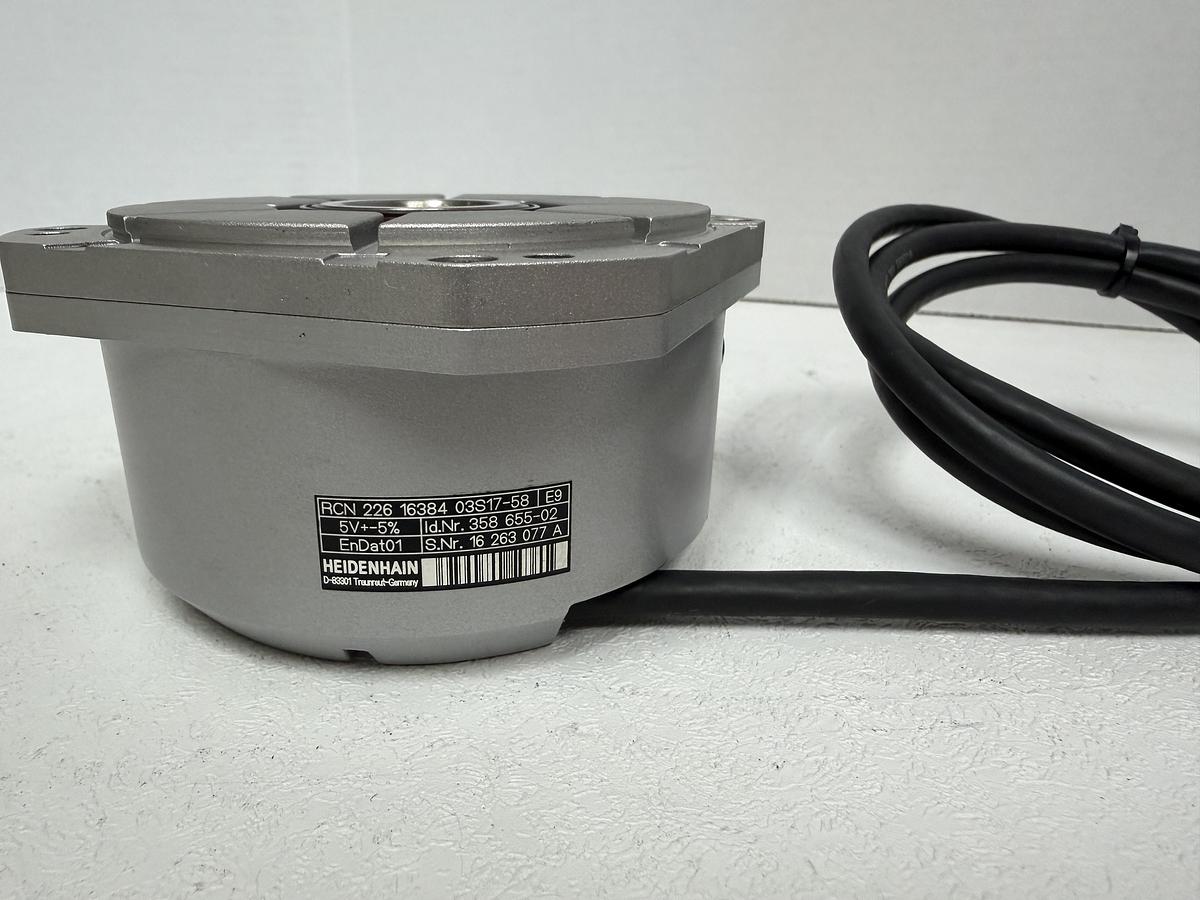

• Model: RCN 226
• ID Number: 358 655-02
• Interface: EnDat01
• Positions per Revolution: 67,108,864
• Line Count: 16,384
• System Accuracy: ±2.5 arcseconds
• Cutoff Frequency (-3 dB): 180 kHz
• Power Supply: 5V (±5%)

Mechanical Details:

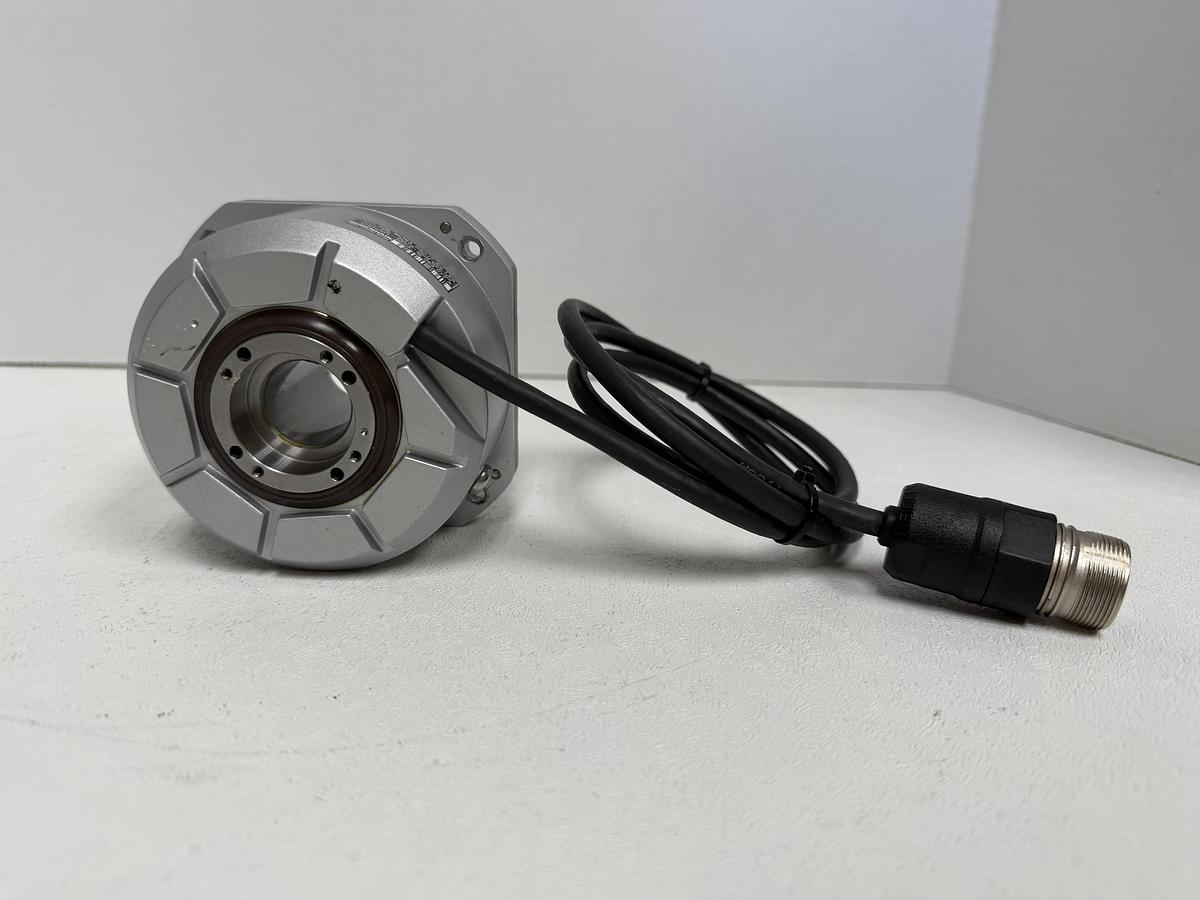

• Shaft Type: Hollow through shaft for axial clamping (Ø 22 mm)
• Flange: Rectangular flange with 85 mm centering collar (aluminum)
• Housing: Aluminum with drainage channels and 42 mm central hole

Environmental & Protection:

• Protection Rating: IP64 (per EN 60529)
• Operating Temperature: 0 to +50°C

Connectivity:

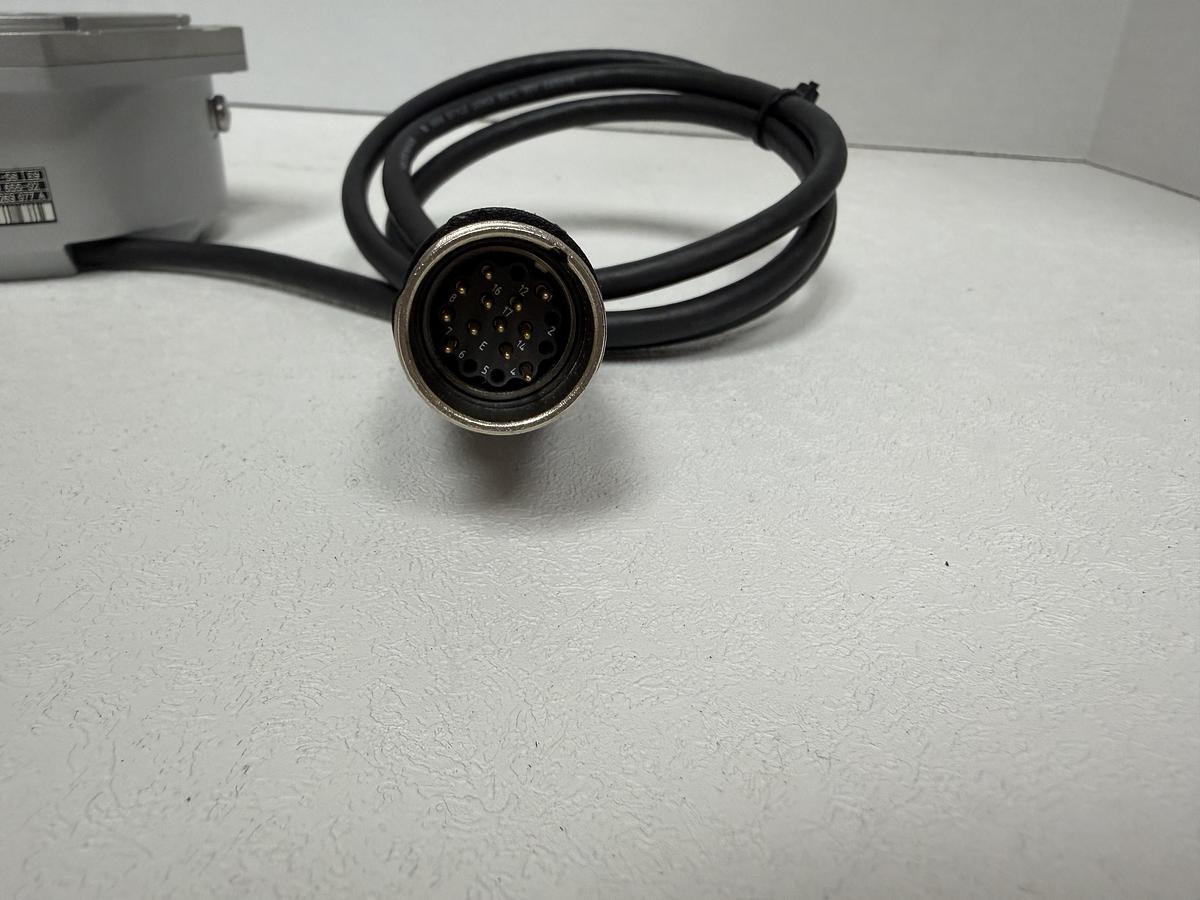

• Electrical Connection: M23 male connector, 17-pin
• Pin Configuration: D288878
• Cable Outlet Direction: Axial and radial use
• Cable Length: 1.0 m
• Cable Type: PUR Ø 6.0 mm

Condition:

Used, in good working condition

What’s Included:

• Heidenhain RCN 226 Encoder (Id.Nr. 358 655-02)
• Attached cable (1 m, PUR)

Shipping & Returns:

• Fast, secure shipping
• Carefully packaged to prevent damage

Note to buyer:

1. Review all photos carefully as they are part of the description per eBay policy.
2. Items that are untested, for parts or repair, or unknown condition are sold as is and are non-returnable.
3. Items are sold as pictured. If it is not shown in the pictures it doesn't come with the item (i.e. power cords, attachments, tooling, etc.)
4. Most listings at the end include a GH and then a number for example (GH119) OR (A19) it is an internal stock reference number and not part of the item's description.

Thanks, GearheadSurplus
