NEW Renishaw TP20 Standard Force CMM Probe Module + Stylus

*Please read full description prior to purchase*

**eBay policy restricts the display of phone numbers in the listing**

SELLING "AS IS - WHERE IS" AS DESCRIBED

** see all pictures**

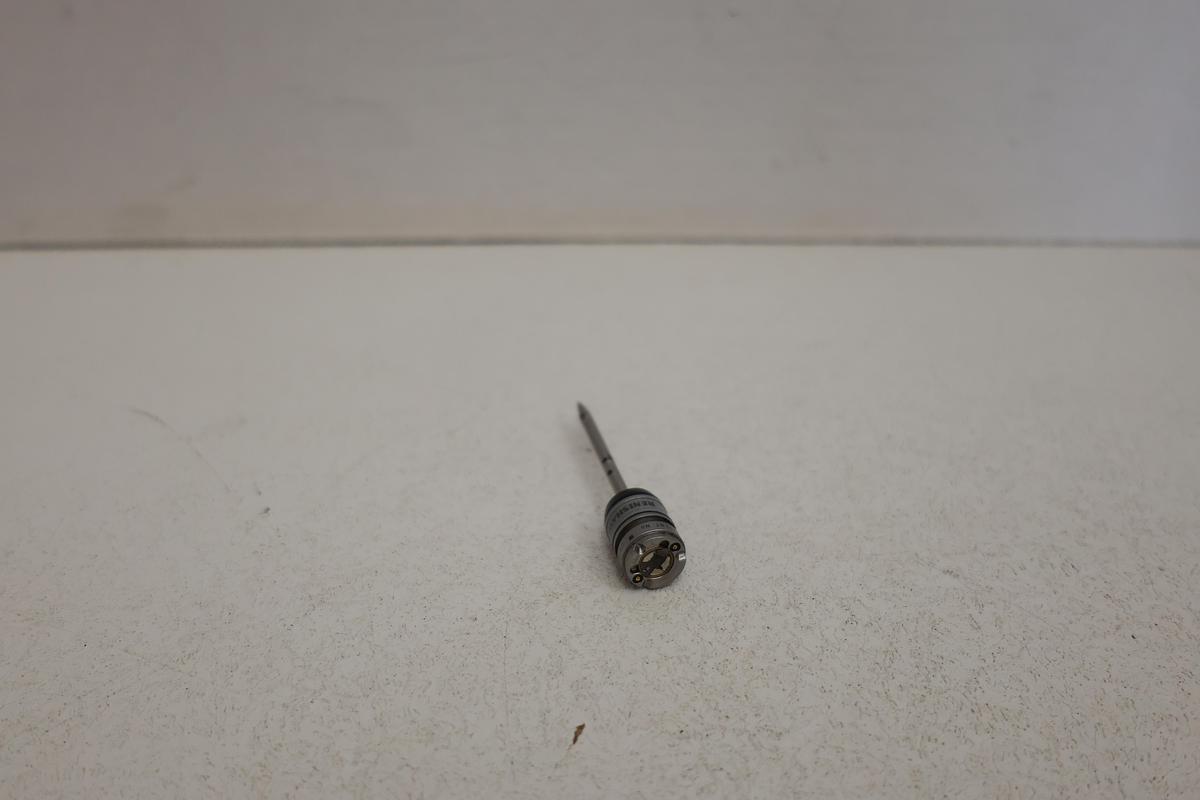

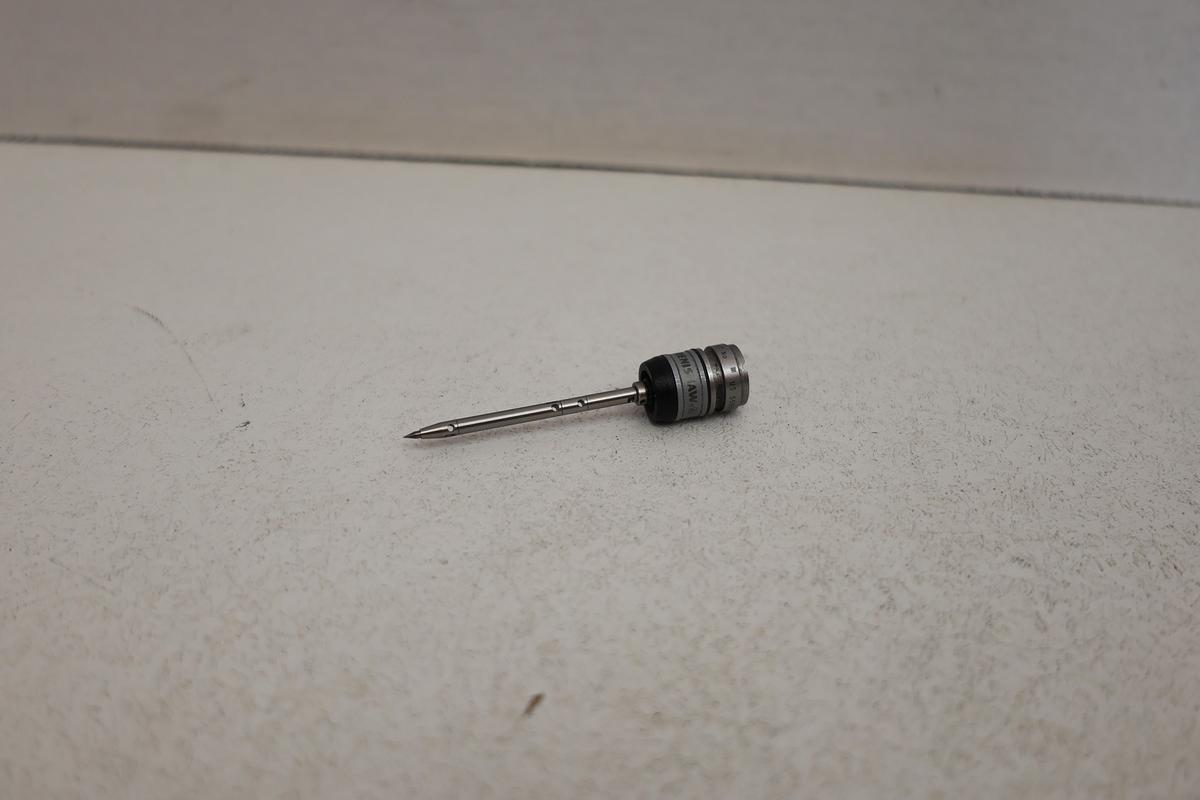

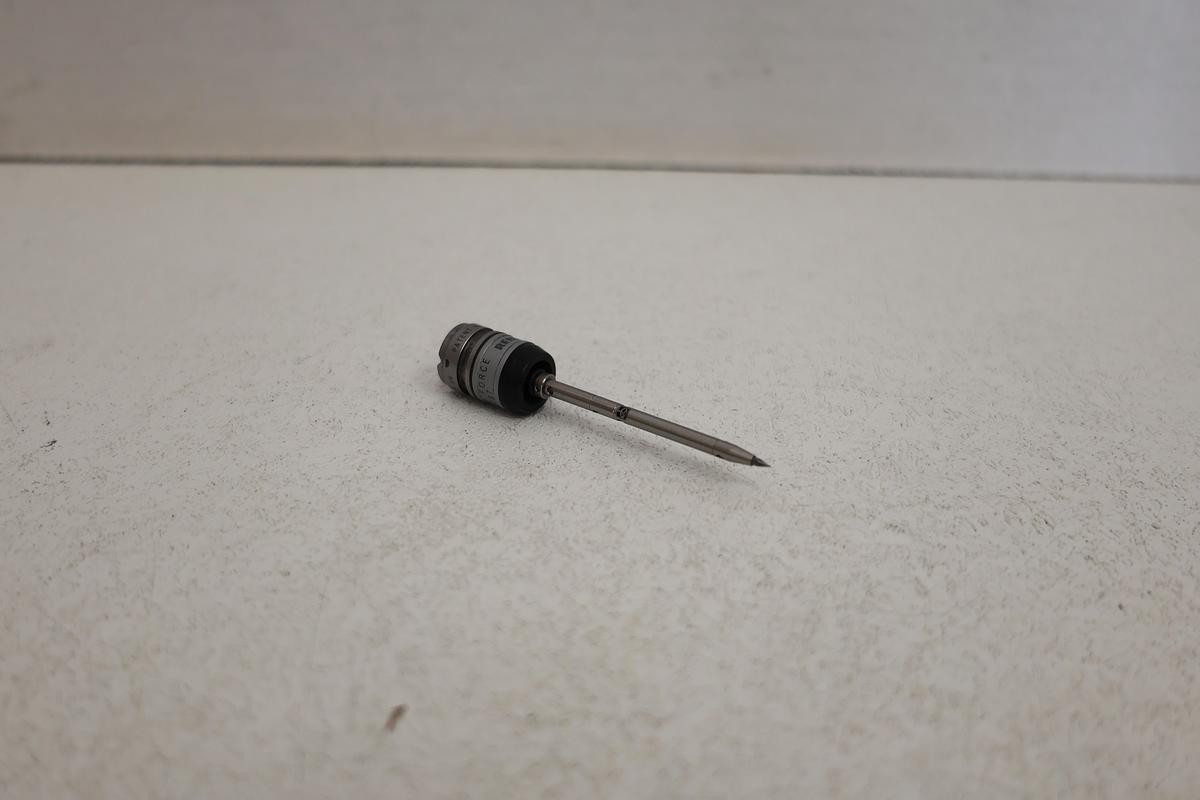

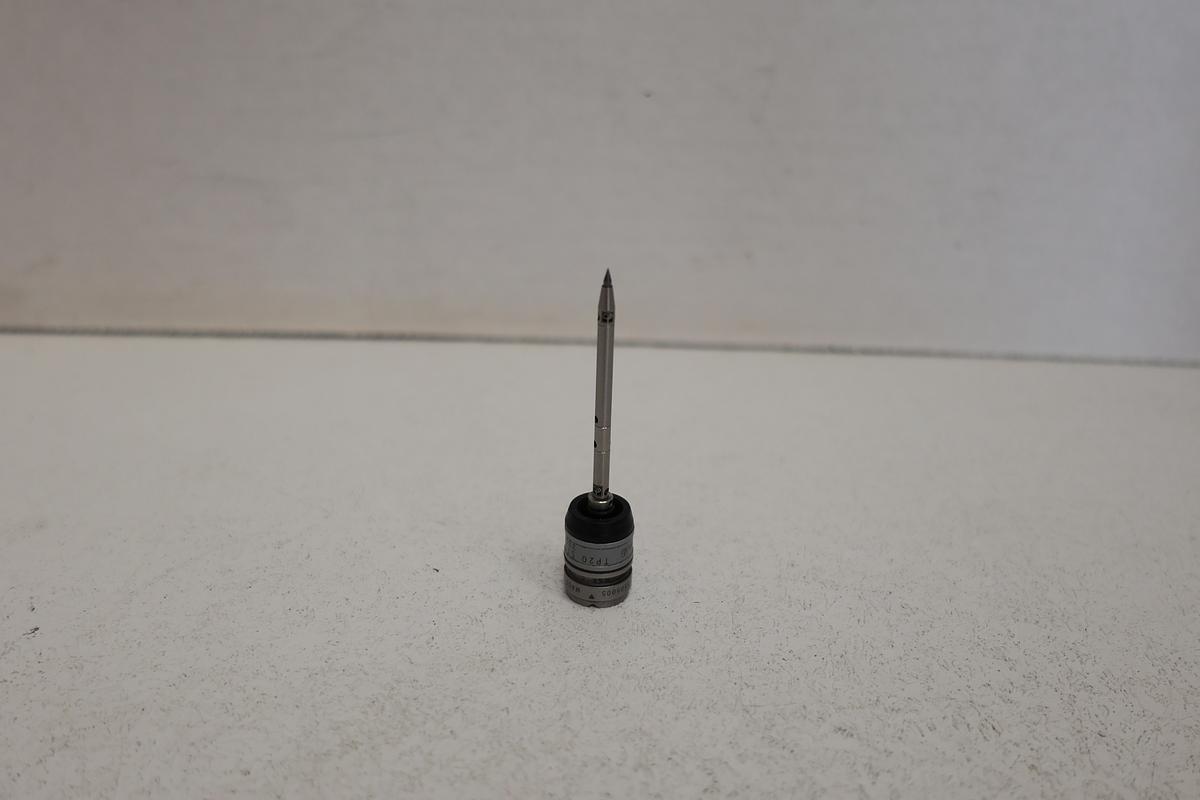

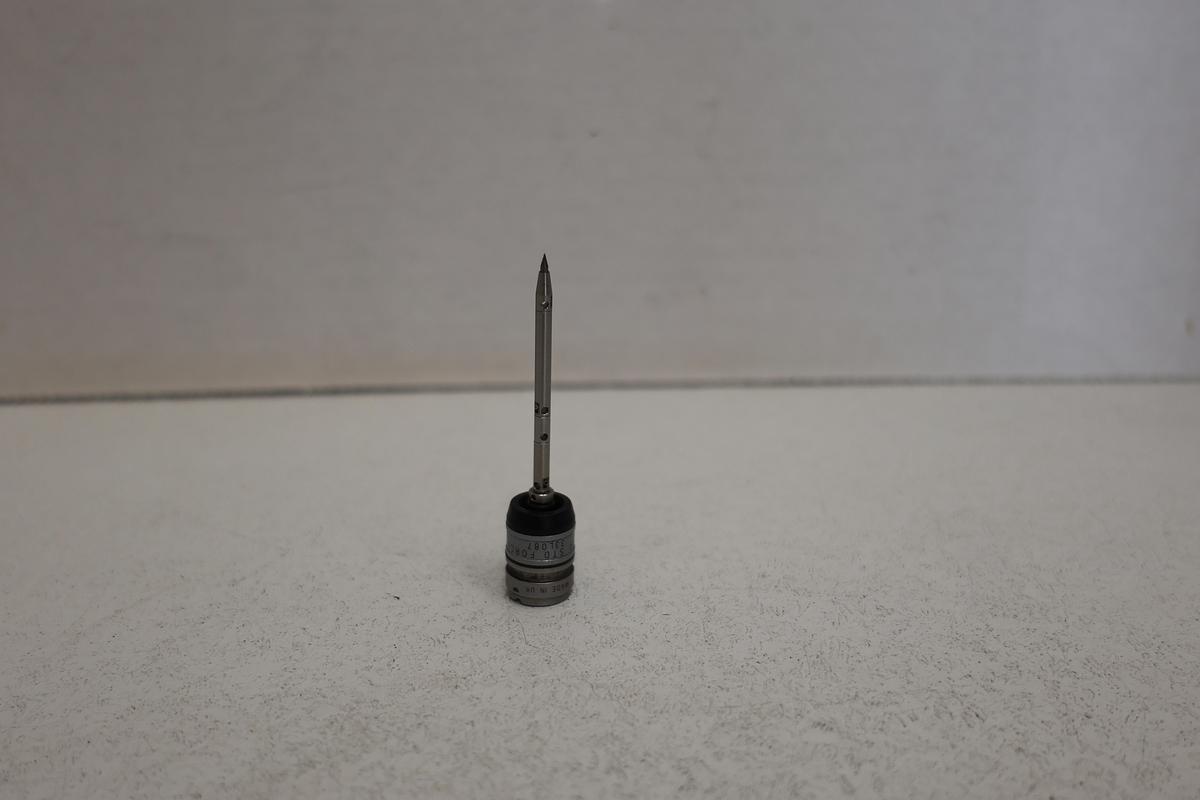

NEW Renishaw TP20 Standard Force CMM Probe Module + Stylus

Brand: Renishaw

Model: TP20

Type: Standard Force (SF) Probe Module

Condition: NEW / UNUSED

Application: Coordinate Measuring Machine (CMM)

Stylus: Includes pointed-tip stylus as pictured

DESCRIPTION

For sale is a NEW Renishaw TP20 Standard Force CMM Probe Module with pointed-tip stylus.

The Renishaw TP20 is a compact, modular touch-trigger probing system designed for precision coordinate measuring applications. The detachable probe module uses a highly repeatable kinematic coupling, allowing TP20 modules and stylus configurations to be changed efficiently.

The Standard Force (SF) module is the black-cap version and is designed for the majority of general-purpose CMM probing applications.

This unit is NEW and UNUSED.

SPECIFICATIONS

• Manufacturer: Renishaw
• Series: TP20
• Module: Standard Force (SF)
• Standard Force module part number: A-1371-0270
• Module identification: Black cap
• Sensing: 5-way — ±X, ±Y, +Z
• Stylus connection: M2 × 0.4
• Module diameter: 13.2 mm
• Module length: Approximately 38 mm
• Standard-force XY trigger force: 0.08 N (8 gf)
• Standard-force Z trigger force: 0.75 N (approximately 76 gf)
• XY overtravel: ±14°
• +Z overtravel: Approximately 4 mm
• Maximum module pull-off force: 10 N
• Module life: Approximately 25,000 changes
• Sealing: IP30

STYLUS CAPABILITY

The TP20 Standard Force module is designed for a wide range of M2 styli.

Recommended limits include:

• Steel/carbide styli up to approximately 40 mm long
• Renishaw graphite-fibre (GF) styli up to approximately 50 mm long
• Star and cranked styli up to approximately 20 mm offset

The exact usable stylus length can depend on the stylus type and CMM application.

INCLUDED

You will receive:

• 1 × Renishaw TP20 Standard Force probe module
• 1 × pointed-tip stylus, as pictured

Please review all photos carefully for the exact item and configuration included with this listing.

COMPATIBILITY

The TP20 probe system is designed for use with compatible Renishaw CMM probe heads/interfaces and is commonly used with Renishaw TP20 systems.

The TP20 module attaches using Renishaw's kinematic coupling system and allows different TP20 modules/stylus configurations to be changed without requiring requalification of the stylus tip in normal applications.

CONDITION

NEW / UNUSED.

This item has not been used for CMM measurement. Packaging and accessories are limited to what is shown in the photographs.

IMPORTANT

Please verify compatibility with your specific CMM, probe body, probe head, and stylus configuration before purchasing.

Photos are of the actual item you will receive.

Renishaw is a registered trademark of Renishaw plc. This listing is for the item described above and is not affiliated with or sponsored by Renishaw unless specifically stated.
